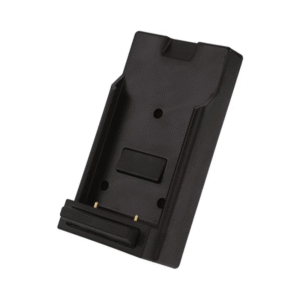

Nightstick - Wall/Vehicle-Mountable Charger for 5582 & 5584 Series Lanterns
AED 341.25 VAT included
Next product
Forntier - Automatic Swinging Arm Type Fire Hose Reel - FRNHR-02A
AED 588.00 VAT included
Forntier – Manual Swinging Arm Type Fire Hose Ree – FRNHR-01M
See all products from frontierAED 430.50 VAT included
The FRNHR-01M is a Frontier-manufactured manual fire hose reel featuring a swinging arm for flexible deployment, wall or cabinet installation, and durable construction—built to meet key fire safety standards.
Description
The Frontier FRNHR-01M is a manual swinging-arm fire hose reel engineered for swift and flexible fire response in buildings. Designed to rotate up to approximately 170°, it allows users to easily direct the hose as needed. This reel complies with BS EN 671-1, and features a 12 bar working pressure with a burst pressure of 18 bar (minimum). Crafted with sturdy powder-coated components and available in red (RAL 3000), every detail promises reliability. The FRNHR-01M can be mounted on walls or within cabinets and is ready for left- or right-handed installation—making it ideal for diverse building layouts and emergency requirements.
Features
- Robust Standards Compliance – Certified under BS EN 671-1 (European standard), and likely LPCB-approved.
- Durable Construction – Powder-coated finish (RAL 3000) protects internal components and enhances fire safety readiness.
- Swinging Arm Design – Allows up to ~170° lateral rotation for versatile hose positioning.
- Manual Operation with External Valve – Controlled via a valve outside the reel for simple, reliable activation.
- Mounting Flexibility – Suitable for wall or cabinet mounting with both left- and right-hand orientation options.
Specifications
- Standard BS EN 671
- Type Manual swinging arm
- Hose ID 25mm
- Hose Length & Type 30m, PVC lining and cover, twisted with polyster yarn
- Disc & Drum 550mm disc, 180mm drum
- Assembly Components RAL3000 Reel, Red Hose, 1" Rotay Nozzle, 1" Angle Valve
- Working Pressure 12bar
- Testing Pressure 18bar
- Nozzle Orifice Diameter 8mm
- Flow Rate 39L/min at 2bar; 56L/min at 4bar; 68L/min at 6bar
