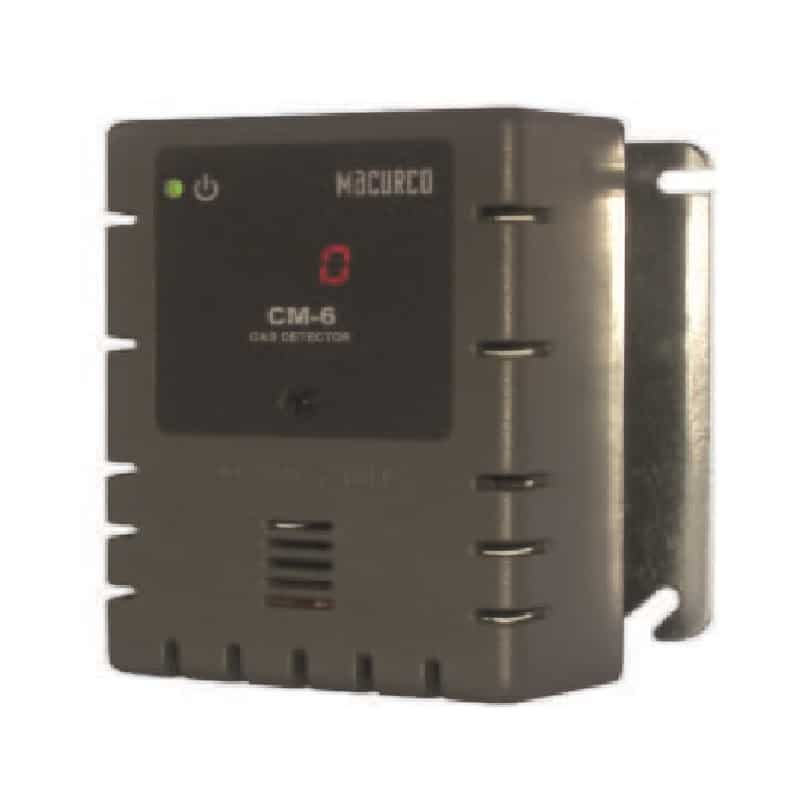

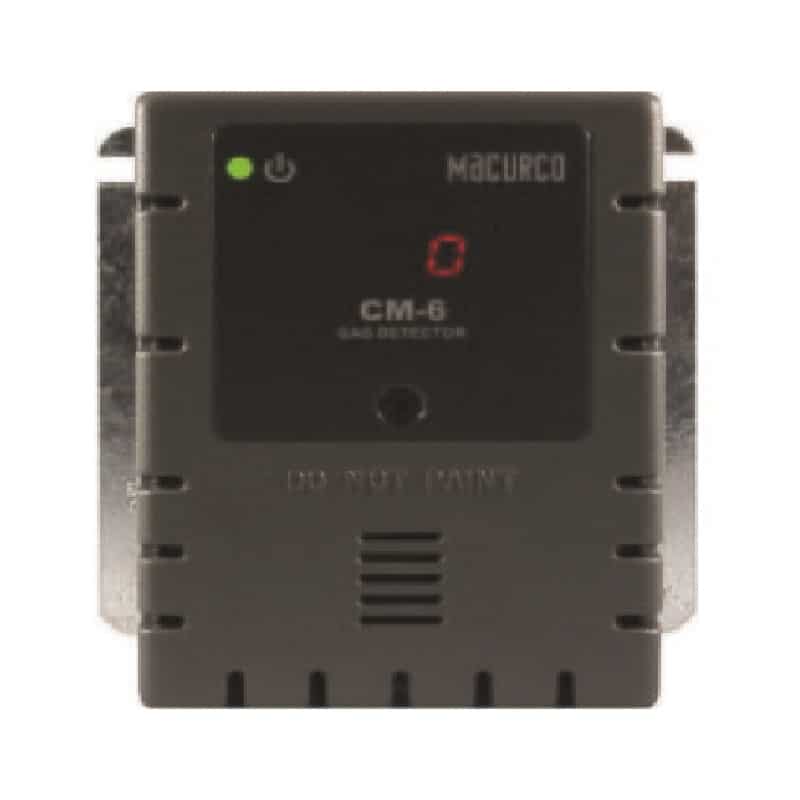

Macurco CM-6 Carbon Monoxide CO Fixed Gas Detector
See all products from macurcoAED 2,520.00 VAT included
Macurco CM-6 Carbon Monoxide CO Fixed Gas Detector are low voltage, dual relay gas detector, controller and transducers. The 6-Series have selectable 4-20mA output, buzzer and digital display options. It is an electronic detection system used to measure the concentration of various gases. This detector also provide feedback and automatic control to help reduce gas concentrations.
Product Code : fs10787
Brand: Macurco
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Macurco CM-6 Carbon Monoxide CO Fixed Gas Detector are low voltage, dual relay gas detector, controller, and transducers. The 6-Series have selectable 4-20mA output, buzzer, and digital display options. It is an electronic detection system used to measure the concentration of various gases. This detector also provides feedback and automatic control to help reduce gas concentrations. Widely used in parking garages, warehouses, boiler rooms, vehicle maintenance facilities, battery rooms, kitchens or other commercial applications.
Features
- ETL LISTED Certified to CAN/CSA Std. C22.2 No 61010-1 Conforms to UL Std. 61010-1
- Low level meter capable of displaying from 0-200 ppm of CO
- The CM-6 meets the Uniform Building Code for enclosed garages and meets OSHA standards for CO exposure
- Selectable fan and alarm relay activation
- 5 A SPDT fan relay controls starters of exhaust fans
- 0.5 A N.O. or N.C. alarm relay connects to warning devices or control panels
- 4-20 mA Current Loop
- CD-12 mounts on a standard 4x4 electrical box and becomes cover for the box
- Supervised system: any internal detector problem will cause the fan & Alarm relay to activate
- Calibration kit is available. One screw allows access for calibration or gas test
Specifications
- Product: Fixed Gas Detector Auto Calibration
- Brand: Macurco
- Model: Macurco CM-6
- Power: 100-240VAC (50 TO 60 HZ)
- Current: 1.0 A MAX
- Shipping Weight: 1 pound (0.45 kg)
- Size: 4 1/2 x 4 x 2 1/8 in. (11.4 X 11.4 X 5.3 cm)
- Color: White or dark gray
- Connections: plugs/terminals
- Mounting box: (not included) 4x4 electric
- Fan relay: 5 A, 240 VAC, pilot duty, SPDT, latching or non-latching
- Alarm relay: 0.5A 120 V, 60 VA
- Buzzer: 85 dBA at 10cm settable to off (default) or on
- Digital display: 4 digit LED selectable to off or on(default).
- Operating Environment: 32°F to 122° F (0?C to 50?C), 10 to 90% RH non-condensing
