Asenware AW-CSD381 LPCB EN54 approved conventional smoke detector uses a state-of-the-art optical sensing chamber. This detector is designed to provide open area protection and to be used with the most conventional fire alarm panel. The conventional rate of rising heat detector uses thermal components to detect the temperature changes in the environment. It can enable fire alarm when the temperature difference achieved the setting rate of rising temperature value reaches the setting fixed value. It has stable and reliable working performance.
Previous product
Back to products
Flametech FT02-03c-00 5Kg CO2 Fire Extinguisher
AED 173.25 VAT included
Next product
Denko EmLED-1430NM-U Narrow Beam 4W LED Mini Recessed Emergency Light
AED 210.00 VAT included

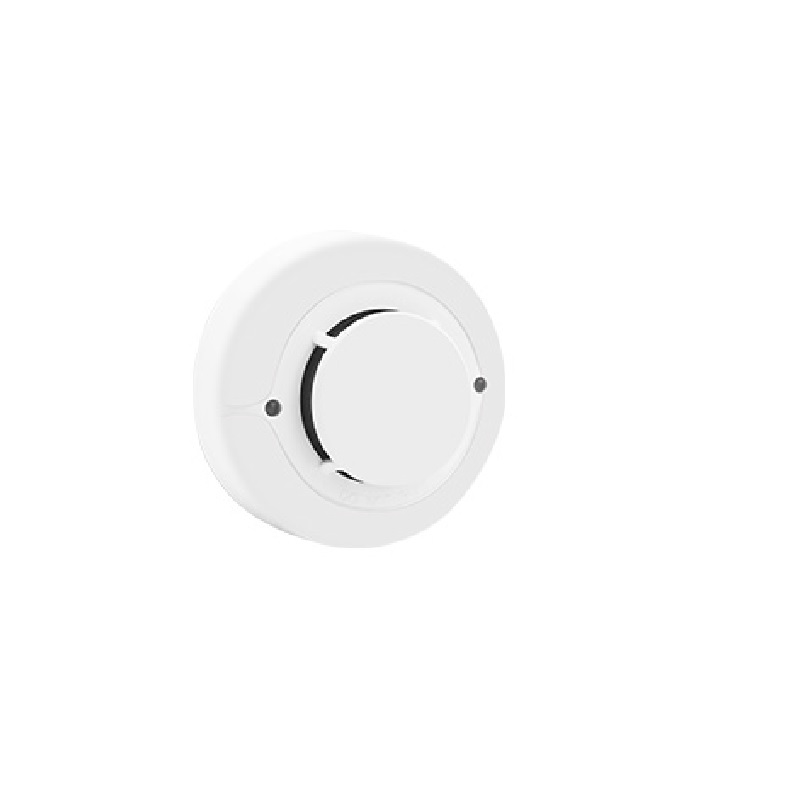

Asenware AW-CSD381 LPCB EN54 Approved Conventional Smoke Detector
AED 126.00 VAT included
Specifications
- Product: Conventional Smoke Detector
- Brand: Asenware
- Model: AW-CSD381
- Operating Voltage Range: 9 to 28 VDC Non-polarized
- Standby Current: ≤120uA@24VDC
- Maximum Alarm Current(LED on): ≤15mA@24VDC (1K Ohm current-limiting resistance)
- Smoke Alarm Sensitivity: 0.1-0.15dB/m
- Height: 48.2mm installed in Base
- Diameter: 99.45mm
- EC certificate: 0832-CPR-F2071
Features
- Conventional rate of rise of rise heat detector uses thermal component to detect the temperature changing in the environment
- fire alarm enables when the temperature difference achieved the setting rate of rise temperature value reach the setting fixed value
- This detector is designed to provide open area protection and to be used with most conventional fire alarm panel
- Two LEDs on each detector provide local 360° visible alarm indication
