Description

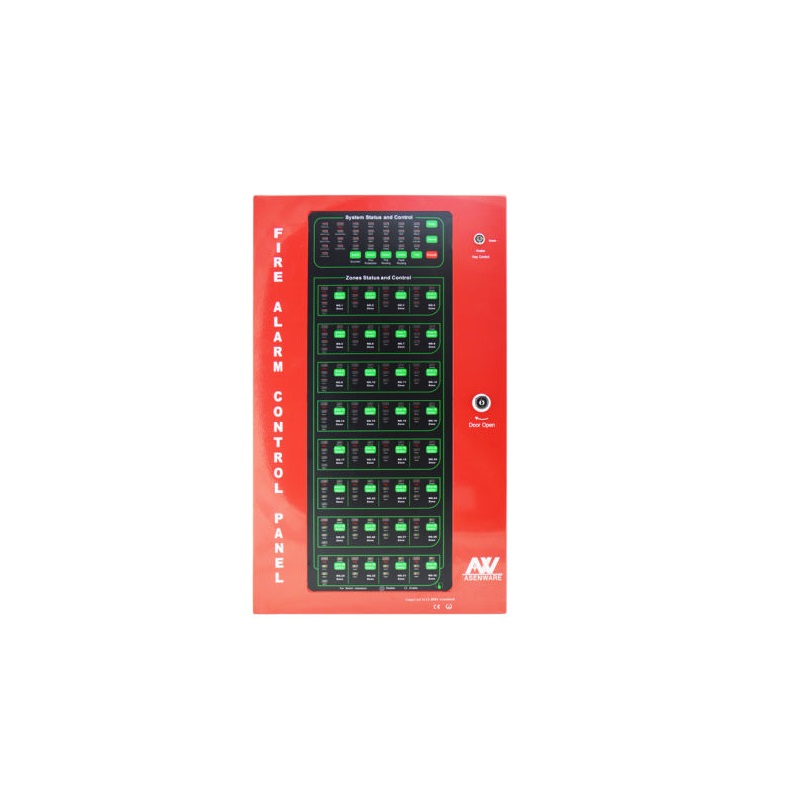

ASENWARE 24 Zone Conventional Fire Alarm Panel is designed based on EN54 part 2＆4 standards. And it is the central part of a conventional fire alarm system, designed for applications requiring smoke detectors, bell, manual pull stations, and sprinkler supervision. Each zone can be disabled by a button. The basic unit offers 1 to 8 zones of initiation and up to 24 zones for larger applications.
Features
- It is modularized design, the panel can expand from 1 zone to 32 zones easily.
- It has EVACUATE button to start a manual fire alarm immediately.
- It has SILENCE button to stop BUZZER and SOUNDERS.
- It has an optional GSM module for fire alarm by SMS
- It is economic, user-friendly and easy maintenance
- Each zone has 1 circuit detectors input
- It has RESET button to reset the pane
- Each zone can be disable by a button
- It has FIRE and FAULT signal output
- It has 2 level control mode by a lock
Specifications
- Product: Conventional Fire Alarm Panel
- Brand: AsenWare
- Mains supply voltage 110VAC or 220VAC
- Internal power supply 27.2VDC
- Total output current limited 3A @ 220VAC
- Batteries (default configuration) 12V2.3AH*2
- Number of general circuits 2
- Maximum number of bells @ 50mA of each Sounder output 30
- Output type NC and NO relay
- Weight (with batteries) 13kg
