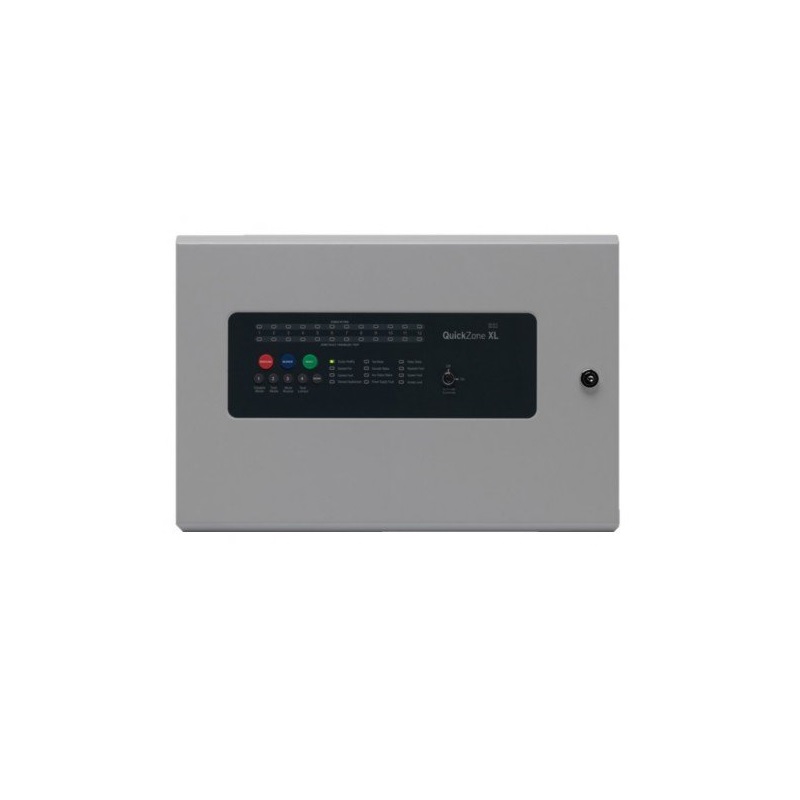

Advanced QuickZone QZXL-8 Conventional Control Panel – XL 8 Zone is up to 12 zone Conventional / Twin Wire (sav-wire) control panel with integral power supply & space for standby batteries. The panel continues the attributes of quality and reliability, that is easy to install, maintain, and is simple to operate for the end-user.
Up to 12 fire zone circuits are provided plus two monitored sounder circuits. Fire and fault VFCO relays, Fire & Fault switched negative outputs; class change and an alert input are also included. The fire zone outputs can be set as ‘Twin Wire’ by DIL switch selection. The DIL switches are also used to allow Zone interface setting and Access to Level 3 mode.
In Level 1, the panel will indicate if there are any faults (Supply, Fire, System, General & repeater). As well as this, the panel is capable of indicating zones in Fire, Fault and disablements and delay status. Auxiliary Output and Sounder status will be shown including if the panel is in test mode.
