Vesda VES-A10-P Aspirating Smoke Detector With 3.5 Inch Display that provides very early warning of fire conditions by drawing air samples through an air sampling pipe network. The VESDA-E VES-A10-P can monitor and individually report on four sectors in the protected area.
Previous product
Back to products
Omex 4 Inch Wet Alarm Check Valve Complete Set UL Listed
AED 3,150.00 VAT included
Next product
Belden 5302FE 4 Core -18 AWG BC, PP/PVC, Foil Shielded, Security And Audio Cable 305 Mtr
AED 2,173.50 VAT included

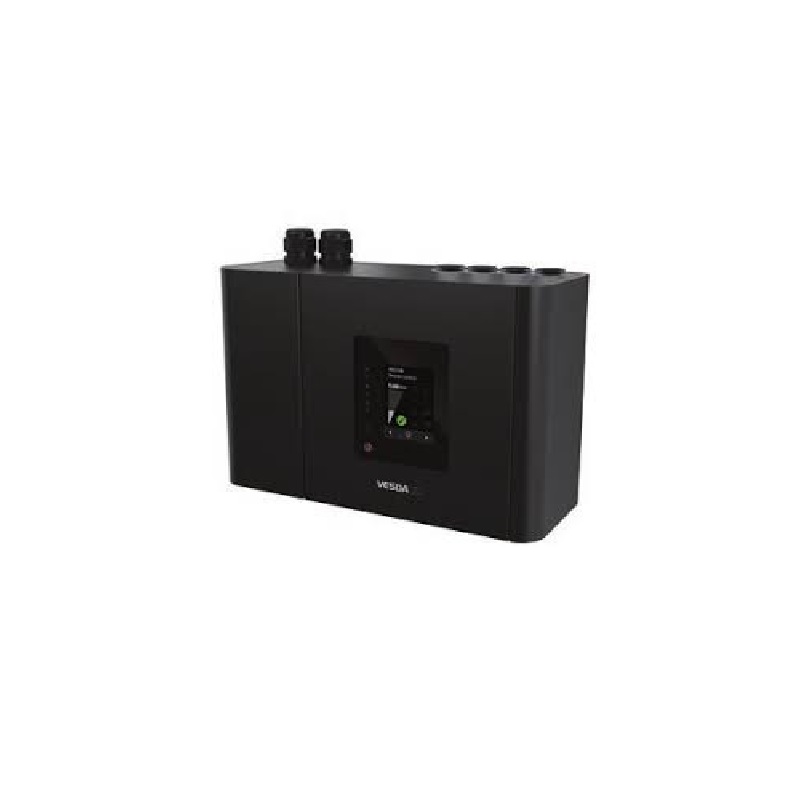

Vesda VES-A10-P Aspirating Smoke Detector With 3.5 Inch Display
AED 34,125.00 VAT included
Specifications
- Product: Aspirating Smoke Detector
- Brand: Vesda
- Model: VES-A10-P
- Supply Voltage: 18 to 30 VDC (24 VDC Nominal)
- Mounting: Upright or inverted
- Event Log: Up to 20,000 events stored on FIFO basis
- Four Alarm Levels: Alert, Action, Fire1 and Fire2
- Two Fault Warning Levels: Maintenance and Major Fault
- Relays: 12 programmable relays
- IP Rating: IP 40
Features
- Field replaceable aspirator, sampling module, filter, detection chamber, ultrasonic flow sensing and scanner module
- Two General Purpose Inputs (GPIs), one monitored and one unmonitored
- Four configurable alarm levels per sector and a wide sensitivity range
- Total maximum pipe length: Four pipe VES-A10-P: 560 m (1,837ft)
- Xtralis VSC, Xtralis VSM4 and ASPIRE PC software support
- Sector addressability for up to four sectors or zones
- Flow fault thresholds configurable per port
- 3.5" colour touch screen for status review
- Long-life, easy-to-replace air sample filter
- Short wavelength laser-based detection
