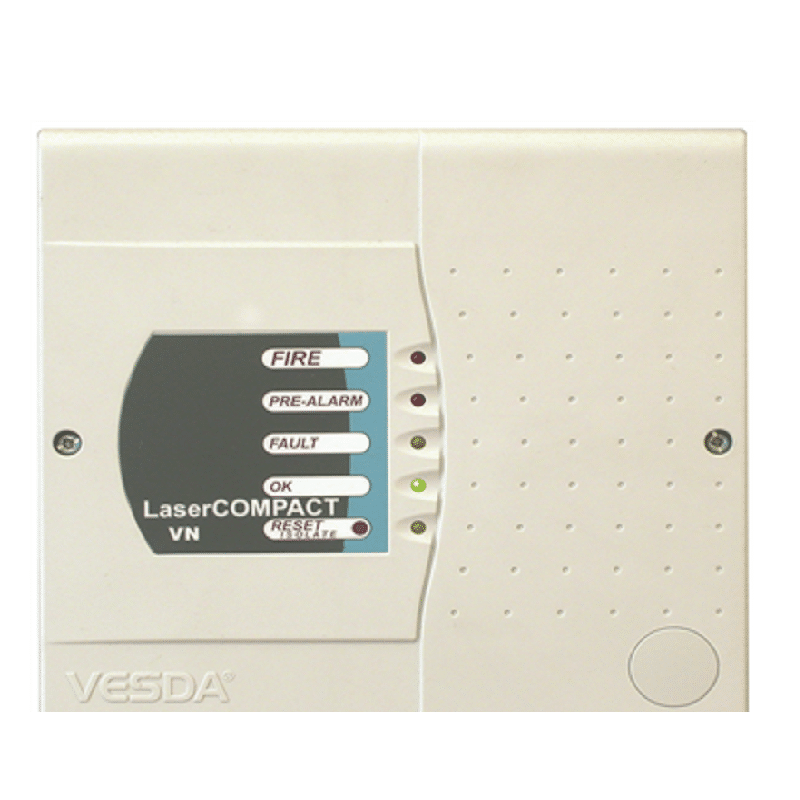

Vesda VLC-505 Compact Detector Vesdanet Compatibility
AED 9,770.25 VAT included
Vesda VLC-505 Compact Detector Vesdanet Compatibility. The LaserCOMPACT detector has been specifically designed to provide all the benefits of aspirating smoke detection, including very early warning, in single environment small areas and where space is a premium. This has been achieved through the combination of approved LaserPLUS detection technology, dual-stage air filtration technology and a modified aspirator design incorporated into a smaller enclosure with a simplified display.
Product Code : FS107300
Brand: Vesda
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Vesda VLC-505 Compact Detector Vesdanet Compatibility. The LaserCOMPACT detector has been specifically designed to provide all the benefits of aspirating smoke detection, including very early warning, in single environment small areas and where space is a premium. This has been achieved through the combination of approved LaserPLUS detection technology, dual-stage air filtration technology and a modified aspirator design incorporated into a smaller enclosure with a simplified display. LaserCOMPACT is available in two versions, one that interfaces via relays only (RO) or via the relays and VESDAnet (VN).
Features
- Suitable for Zone 2 applications
- Optional remote display and relay capability
- IP54 rated stainless steel enclosure
- Clean air barrier optics protection
- VESDAnet communication (VN)
- Three (3) Programmable Relays
- Absolute smoke detection
- Wide sensitivity range
- Three (3) Alarm Levels
- Five (5) status LEDs
Specifications
- Supply voltage: 18 to 30 VDC
- Power consumption: 5.4 W quiescent, 5.9 W with alarm
- Current consumption: 225 mA quiescent, 245 mA with alarm
- Fuse rating: 1.6 A
- Dimensions (WHD): 268 mm x 268 mm x 97 mm
- Operating conditions: Ambient: -10°C to 55°C, Tested: -10°C to 55°C, Sampled Air: -20°C to 60°C, Humidity: 10% to 95% RH, non-condensing
- Storage Temperatures (non-operational): Humidity: Dry (<95%), Temperature: 0°C to 85°C Must not be exposed to sunlight or other radiation sources
- Sampling network: Maximum area of Coverage 800 sq.m
- Computer design tool: ASPIRE2
- Relays: 3 Relays rated 2 A @ 30 VDC, Fire (NO), Pre-Alarm (NO), Alert/Fault (Maintenance & Isolate) (NC/NO), Configurable as latching or non-latching
- IP rating: IP54
- Enclosure: Grade 304 stainless steel
- Weight: 4.9 kg
