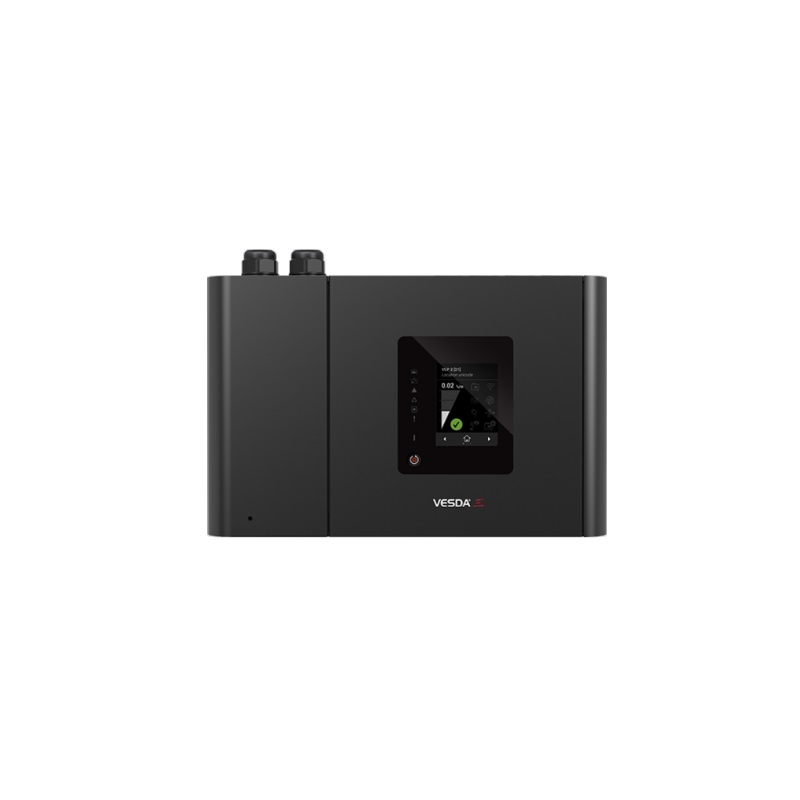

Vesda-E VEP-A10-P 4 Pipe Detector with 3.5″ Touch Screen Display, VESDA-E VEP series of aspirating smoke detectors extend the reach of the VESDA-E platform to a wide range of applications. VEP sensitivity range is from 0.005-20%/m (0.0015-6.25%/ft) and provides up to 40 Class A-holes. VEP provides linear pipe lengths up to 280 m (918 ft) and up to 560 m (1,837 ft) of branched pipe networks. VEP also provides Stax and Analytics support together with Ethernet, WiFi, USB, and VESDAnet capabilities.
Vesda-E VEP-A10-P 4 Pipe Detector with 3.5″ Touch Screen Display – Black
AED 19,083.75 VAT included
Specifications
- Product: Aspirating Smoke Detector
- Brand: Vesda-E
- Model: VEP-A10-P
- Supply voltage: 18-30 VDC (24 V Nominal)
- Area Coverage: 2,000 m2 (21,520 sq. ft)
- Min. airflow per pipe: 15 l/m
- Pipe Inlet: External diameter 25 mm or 1.05 in (3/4 in IPS) Exhaust: External diameter 25 mm or 1.05 in (3/4 in IPS) via adaptor
- Relays: 7 programmable relays (latching or non-latching states) Contacts rated 2 A @ 30 VDC (Resistive)
- Dimensions (WHD): 350 mm x 225 mm x 135 mm (13.8 in x 8.9 in x 5.3 in)
- Weight: 4.1 kg (9.0 lb)
Features
- Flair detection technology delivers reliable very early warning in a wide range of environments with minimal nuisance alarms
- Four alarm levels and a wide sensitivity range deliver optimum protection for the widest range of applications
- Multi stage filtration and optical protection with clean air barriers ensures lifetime detection performance
- Ethernet for connectivity with Xtralis software for configuration, secondary monitoring and maintenance
- Referencing to accommodate external environmental conditions to minimise nuisance alarms
- Smart on-board filter retains dust count and remaining filter life for predictable maintenance
- Intuitive LCD icon display provides instant status information for immediate response
- Industry first. Aspirating detector secondary monitoring and maintenance via WiFi
- Field replaceable sub-assemblies enable faster service and maximum uptime
- Extensive event log (20,000 events) for event analysis and system diagnostics
