AVA PREVENT QUARTAS-500s Single Pipe Aspirating Smoke Detector
AED 12,348.00 VAT included
Next product
First Aid Box Kit For 50 People
AED 178.50 VAT included
Description

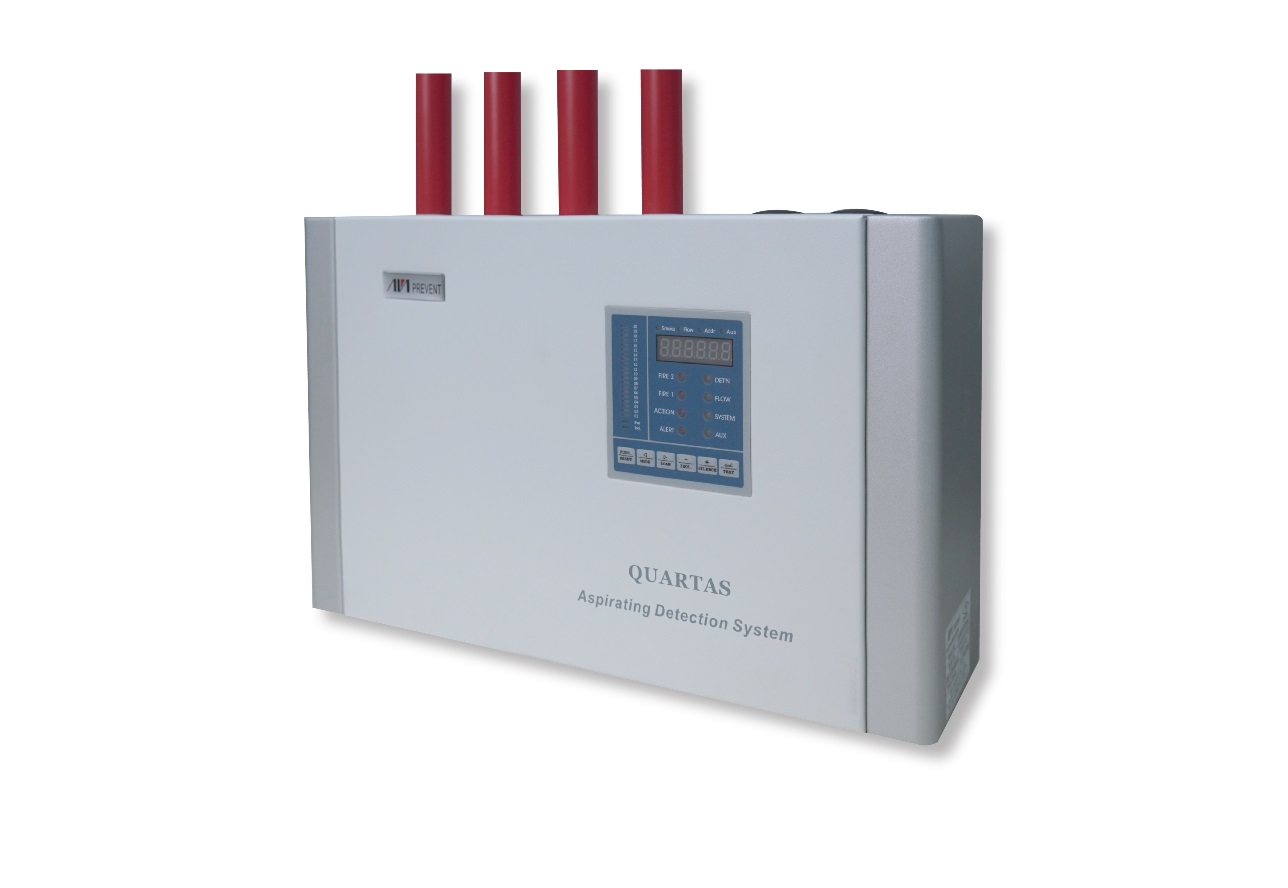

AVA PREVENT QUARTAS-2000S Aspirating Smoke Detector consists of four individual aspirators, connecting to its pipe inlet port and one high sensitivity smoke detector. All the air samples from the four pipes are mixed and go to a single exhaust port. The mixed air samples are then drawn into the high sensitivity smoke detector on the way to the exhaust port.
Features
- AI assisted algorithmic and patented sensitivity calibration
- Highest sensitivity range as compared to alternatives
- 10 speed aspirator (More nuance and flexibility)
- Very early warning smoke detection
Specifications
- Product: Aspirating Smoke Detector
- Brand: AVA PREVENT
- Model: QUARTAS-2000S
- Major Components - 4x Sampling Pipes, 4x Aspirators, 4x Flow Sensors, 1x High Sensitivity Smoke Detector, 1x Filter
- Smoke Detection Range- 0.001~25%/m
- Alarm Sensitivity Range- 0.005~20%/m
- Maximum Pipe Length* - Under EN54-20 Class A: 4x100m (4x10 Holes), 3x100m (3x13 Holes), 2x100m (2x20 Holes) & Under EN54-20 Class B: 4x100m (4x15 Holes), 3x80m (3x20 Holes), 2x60m (2x25 Holes)
- Sampling Pipe - Material: ABS/UPVC, OD: 25mm
- Relay Output -7 Relays on Termination Board (Configurable) and Rating: 2A@30 VDC
- Event Logs - Number of Events: 183000, Event Type: Alarm/Fault/Operation/Smoke/Flow/Auxiliary Gas Sensors
