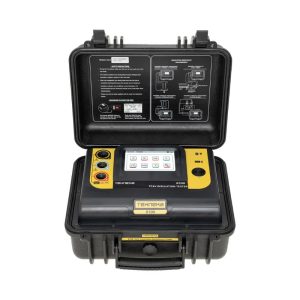

Tekneka - 8100 Insulation Tester 10kV AED 9,990.00

Click to enlarge

Tekneka – MS100 Digital Oscilloscope

Name: Tekneka - MS100 Digital Oscilloscope
SKU: fs0506100
Price: 420.00 AED
Availability: InStock

See all products from tekneka

AED 420.00 VAT included

In stock

Compare

Product Code : fs0506100 Brand: Tekneka Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

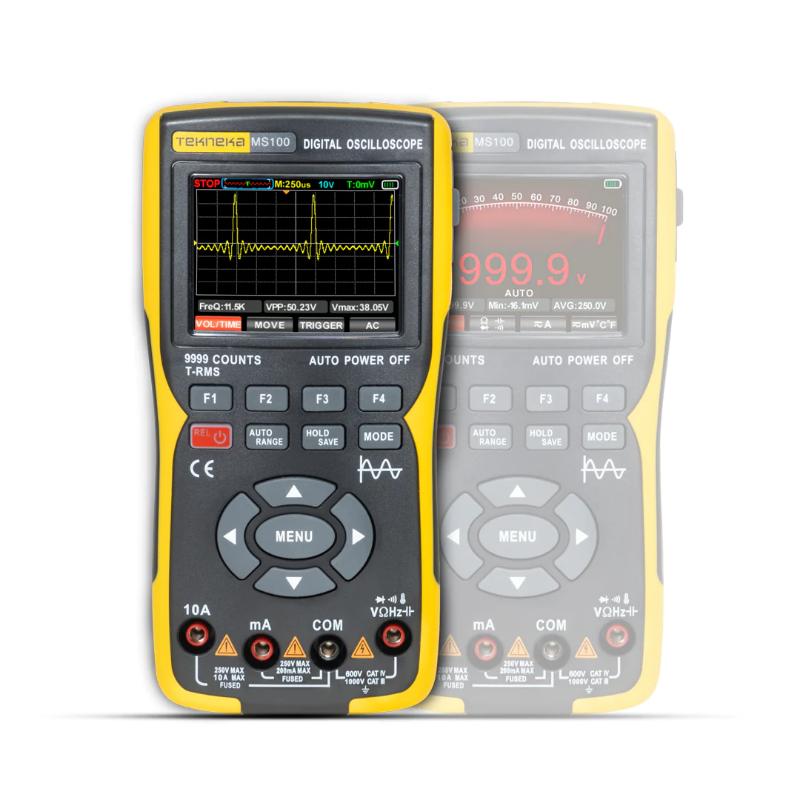

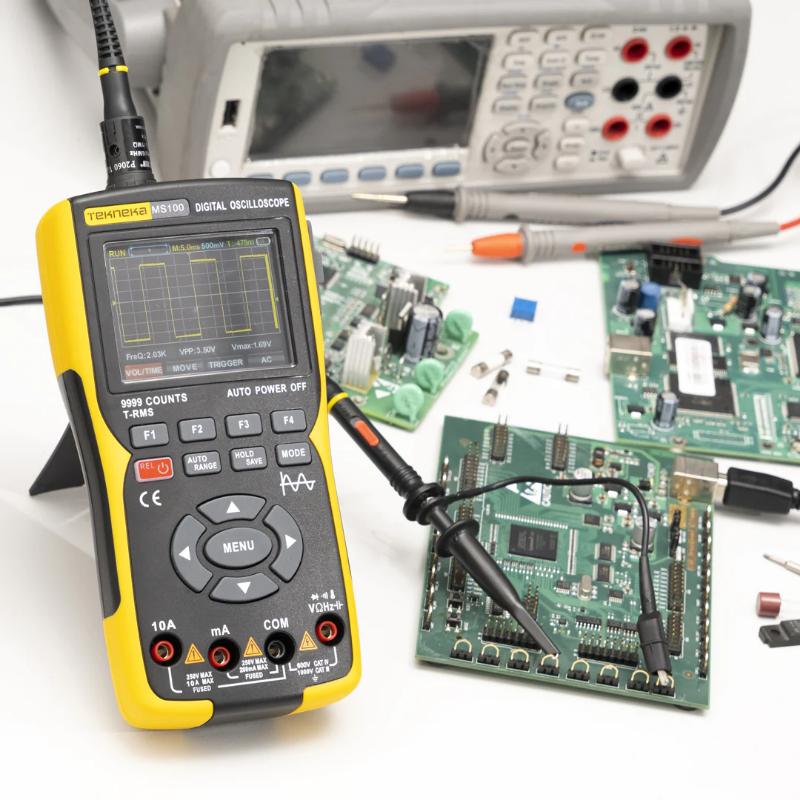

Tekneka MS100 is a powerful single-channel digital oscilloscope/true RMS multimeter that comes with a bandwidth of 10MHz | AC/DC 999.9V ranges. Its compact size, 2.8? IPS color display, easy-to-use interface, and compliance with the latest industrial safety regulations (CAT IV 600V, CAT III 1000V) make it an excellent choice for users. Users can observe the real-time acquisition of waveforms in oscilloscope mode, which allows them to adjust the trigger cursor, vertical voltage position, waveform, voltage scale, and AC/DC coupling. In multimeter mode, it can measure voltage, capacitance, resistance, temperature, and frequency. It features a USB-powered rechargeable battery, PC connectivity, an oscilloscope input terminal, and a ground/signal terminal.

Product Includes: 2 x Test Leads, Oscilloscope Probes Set, Temperature Probe, Type C USB, User Manual, Carrying Pouch.

Features

2.8? IPS color display helps to analyze the real-time waveform
Function key F1 to F4 to select multiple options and settings
Users can hold the measurements and save them in internal memory
Easy to switch b/w oscilloscope and multimeter mode
The menu key navigate to system options with multiple setting pages
Oscilloscope/multimeter mode has an auto-ranging options
Frequency, peak-to-peak voltage, and max voltage measurement are available
REL relative value measurement in multimeter mode
Battery status, time base/scale, voltage, trigger level, and running status are displayed in the oscilloscope mode
Two point calibration option is available to make adjustments
