Polon-Alfa EKS-4001W input/output devices are designed to react to a signal given off by the control panel to activate the alarm and fire-protection devices, such as signaling devices, fire dampers, and fire-protection doors, etc., using relay contacts. They enable control over the efficiency and proper activation of the controlled unit. The EKS-4001W devices have an additional input designated to supervise devices or installations not related to control operations. The EKS-4001W input/output devices operate only in lines/loops of the POLON 4000 system addressable fire alarm control panels.
Previous product
Back to products
Honeywell BW Clip BWC2-H Single Gas H2S Detector(2 Yrs Disposable Type)
AED 336.00 VAT included
Next product
Polon-Alfa EWK-4001 Addressable Multi-Input Supervising Device (4 Inputs)
AED 472.50 VAT included

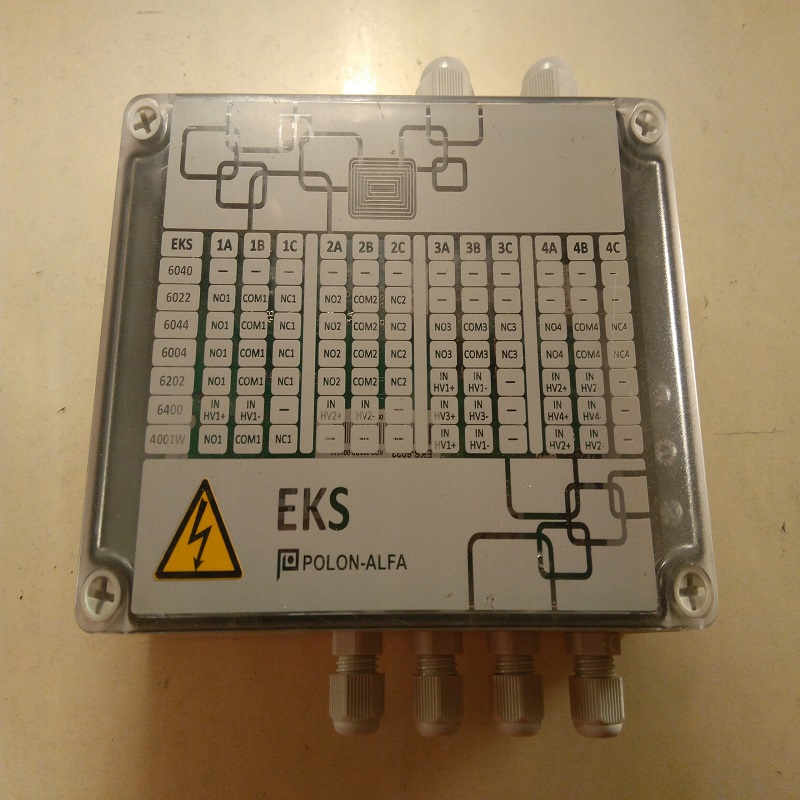

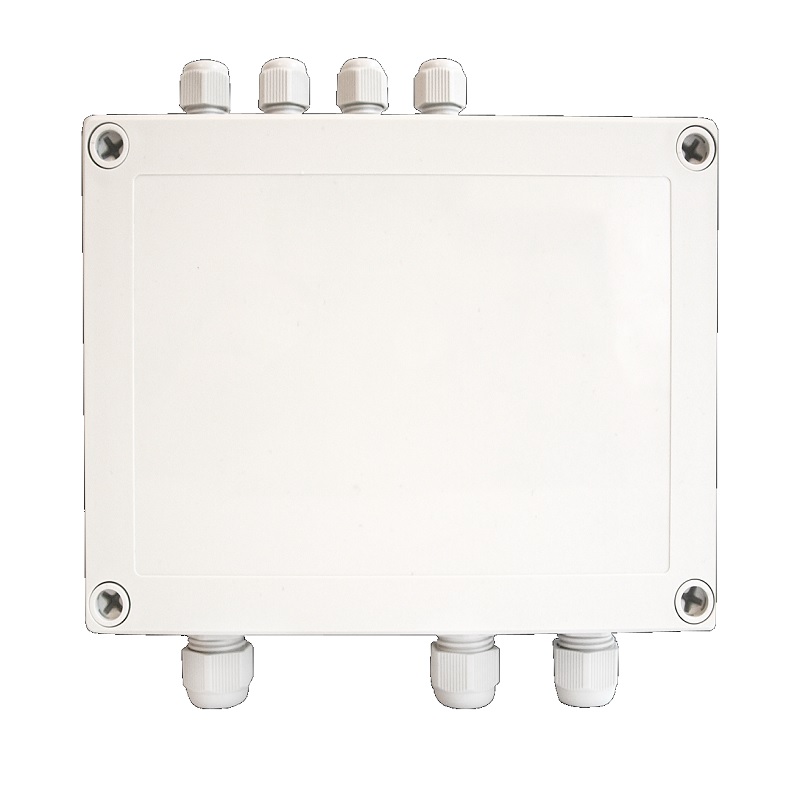

Polon-Alfa EKS-4001W Addressable Interface Module (2 Inputs & 1 Output)
AED 420.00 VAT included
Specifications
- Product: Addressable Interface Module
- Brand: Polon-Alfa
- Model: EKS-4001W
- Operating voltage: 16.5 ÷ 24.6 V
- Current consumption in stand-by mode: < 250 μA
- Load capacity of relay contacts NO/NC: max 2 A/250 V
- Delay in relay operation: 2 s, 30 s, 60 s, 90 s
- Number of monitoring inputs: 2
- Dimensions: max 180 x 202 x 74 mm
- Weight: < 0,5 kg
Features
- Monitoring inputs confi gurati on (high voltage, low voltage)
- Monitoring of the conti nuity of the wire connected to the relay output (ON, OFF)
- Low voltage monitoring inputs operation method (NC, NO)
- High voltage monitoring inputs operation method (voltage present – quiescent mode, lack of voltage – active)
