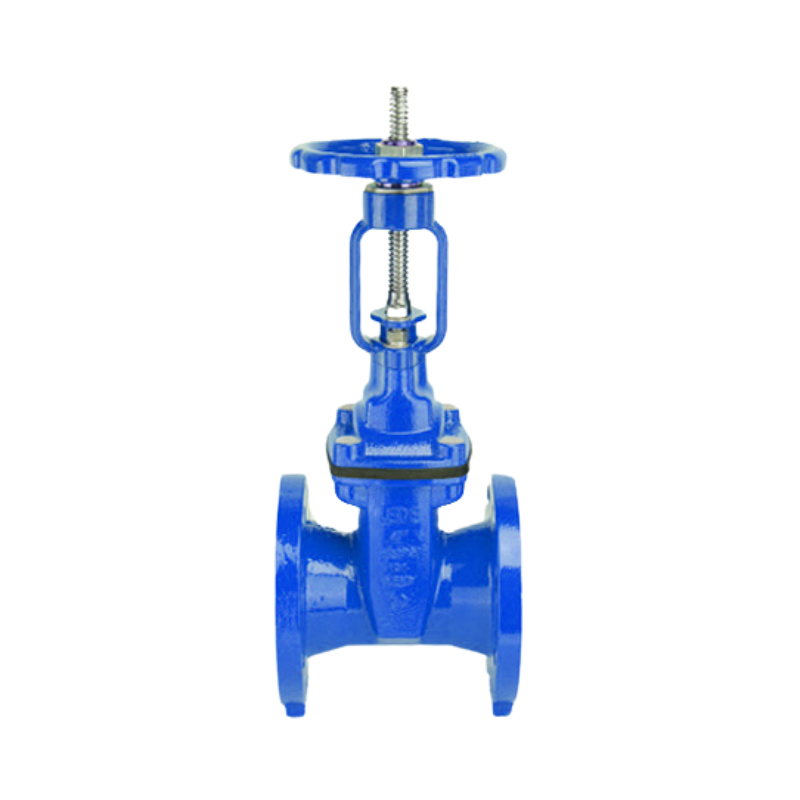

SVS OS&Y Gate Valve 8″ 12-Hole Flange Class 300
AED 5,670.00 VAT included
8″ OS&Y rising stem gate valve with 12-bolt Class 300 flange, suitable for high-pressure water and oil applications. API 600 compliant.
In stock
Product Code : fs0507672
Brand: SVS
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SVS 8″ Class 300 gate valve features a bolted bonnet, outside screw & yoke design with 12-bolt ANSI B16.5 flange connections. Constructed with ASTM A216 WCB body, stainless steel stem, and flexible wedge design. Rated for 50Bar working pressure at 425°C.
Features
- OS&Y (Outside Screw & Yoke) design
- 12-bolt ANSI B16.5 flange
- ASTM A216 WCB body
- Stainless steel stem (SS410)
- Flexible wedge design
- Graphite packing
- Blow-out proof stem
- 50Bar working pressure
- API 600 compliant
Specifications
- Size: 8" (DN200)
- Connection: 12-Bolt Flange
- Pressure Class: ASME 300 (50Bar)
- Temperature Range: -29°C to 425°C
- Body Material: ASTM A216 WCB
- Stem Material: ASTM A182 F6a
- Seat Material: 13% Cr Stainless Steel
- Packing: Flexible Graphite
- Standards: API 600, ASME B16.34
- Weight: 340kg
