Sofamel – Medium Voltage Overhead Lines with Automatic Clamps – PATL-3/MC/3525

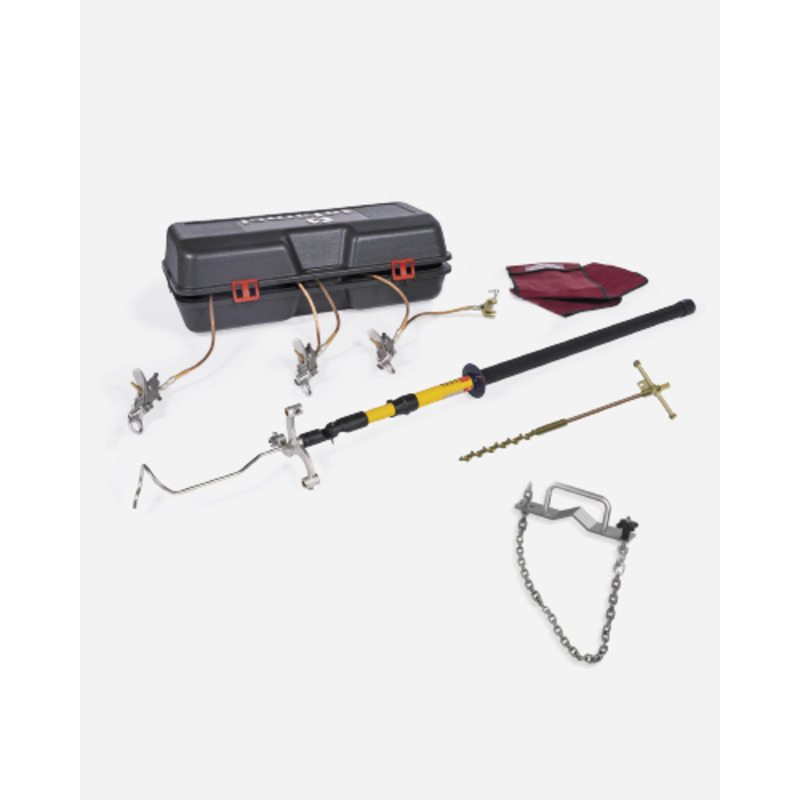

The Sofamel PATL-3/MC/3525 aims to protect the operator from accidental commissioning or possible voltage return during repair operations. The kit is an earthing and short-circuit kit suitable for medium-voltage overhead lines. It includes an MC clamp and has a 9kA/1s short circuit current ICC max. According to the IEC 61230 standard. Product Includes: 3 MC aluminium alloy clamps with automatic activation fastening for cylindrical conductors with diameters between 3 and 20 mm. 1 dispenser head with a hook with M-10 thread. 2 copper cables with PVC insulation of 35 mm² section and 2.5 m long. 1 copper cable with PVC insulation of 25 mm² section and 5 m long. 3 TT-38L milling earthing lathe. 1 PEP-ECO clamp for post. 1 copper cable with PVC insulation of 25 mm² section and 13 m long. 1 telescopic pole (1.10 m folded and 2 m extended). 1 earthing rod. 1 plastic case to store and transport the equipment. 1 bag to store and transport the pole. 1 bag to store and transport the earthing rod.
