Sofamel – Earthing and Short-Circuit Kit – ECBT-4/MPUL/7070

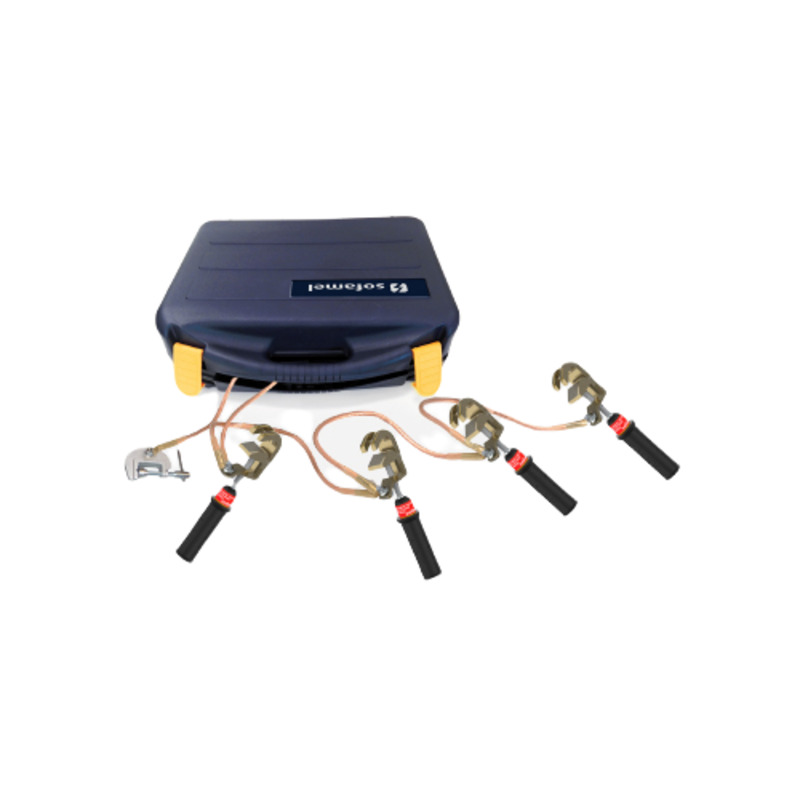

These Sofamel ECBT-4/MPUL earthing and short-circuit equipment are suitable for low-voltage electric panels. The kits serve to protect an operator from accidental commissioning or possible voltage return during repair operations. The MPUL clamps can be fixed on bare cylindrical conductors, flat bars, bending bus bars, or fixing points. According to the IEC 61230 standard. Three options are available with either 19 KA/1s, 25,5 KA/1s, or 30 KA/1s short circuit current Max. ICC. Contents: 4 MPUL aluminium alloy clamps with screw tighten and handle insulated grip, 3 copper cables with PVC insulation of 70/95/120 mm2 section and 0,6 m long, 1 copper cable with PVC insulation of 70/95/120 mm2 section and 2 m long, 1 TT-50 earthing lathe, 1 plastic case to store and transport the equipment.
