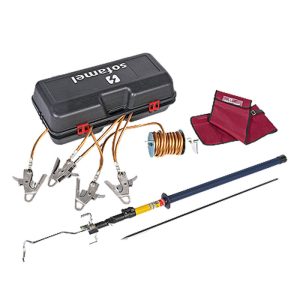

Sofamel 661 PATL-MCL-4 4 Clamps Medium Voltage Overhead Lines - Automatic Clamps Fast installation + Lock system
Price range: AED 6,384.00 through AED 8,190.00 VAT included
Sofamel 661 PATL-MC-4 4 Clamps Medium Voltage Overhead Lines – Automatic Clamps
Price range: AED 6,195.00 through AED 6,835.50 VAT included
Sofamel 661 PATL-MC-4 4 Clamps Medium Voltage Overhead Lines – Automatic Clamps
Product Code : fs0503011
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

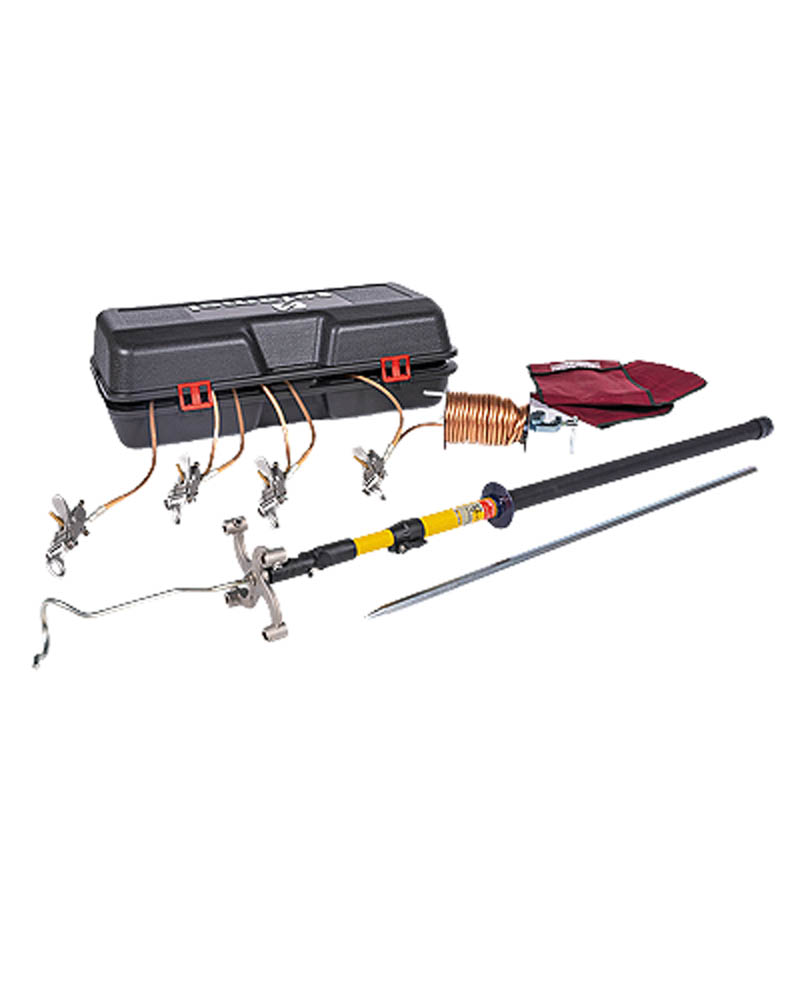

Earthing and short-circuit equipment for medium voltage overhead lines. The main aim of its installation is operators’ protection against accidental commissioning or possible voltage return during repair operations. The MPUB clamp is fixed on bare conductors by screw-tightening. The MC clamp is fixed on bare conductors by pressure and can be removed by an operating hook. The three clamps can be placed at the same time thanks to the dispenser head facilitating the operators’ work.
Features
- 4 MC aluminium alloy clamps with automatic activation fastening for cylindrical conductors with diameter between 3 and 20 mm.
- 1 dispenser head with hook with M-10 thread.
- 3 copper cables with PVC insulation of 16/25/35 mm² section depending on model and 2.5 m long.
- 1 copper cable with PVC insulation of 16/25 mm² section depending on model and 15 m long.
- 1 metallic spool to store the 15 m of earthing cable.
- 1 telescopic pole (1.10 m folded and 2 m extended).
- 1 earthing rod.
- 1 bag to store and transport the pole and the earthing rod.
- 1 plastic case to store and transport the equipment.
Specifications
- Brand: Sofamel
- Model: PATL-MC-4
