Sofamel 661 PATL-MCL-4 4 Clamps Medium Voltage Overhead Lines – Automatic Clamps Fast installation + Lock system
Product Code : fs0503012
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
Earthing and short-circuit equipment for medium voltage overhead lines.The main aim for its installation is operators protection against an accidental commissioning or possible voltage return during repair operations.The MPUB clamp is fixed on bare conductors by screw-tightening. The MC clamp is fixed on bare conductors by pressure and can be removed by an operating hook. The three clamps can be placed at the same time thanks to the dispenser head facilitating operators work.

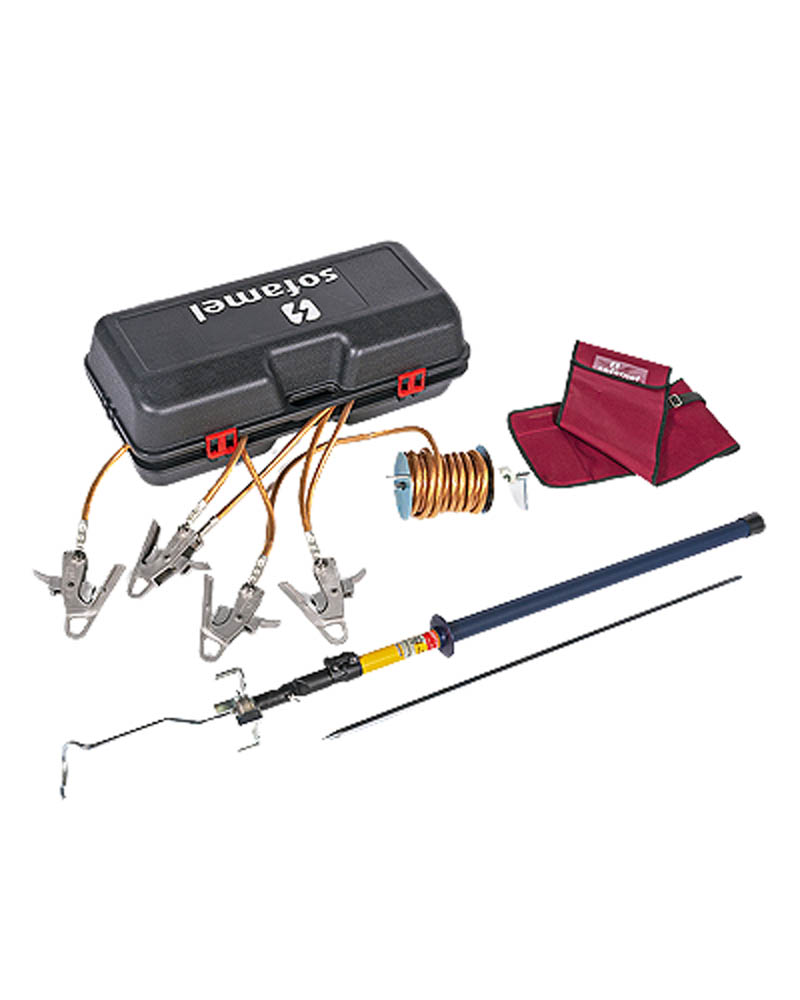

Features
- 4 aluminium alloy clamps closing by automatic spring activation for cylindrical conductors with diameter between 8 and 30 mm.
- 1 clamp dispenser head with recovery hook.
- 3 copper cables with PVC insulation of (16, 25, 35, 50, 70 mm2) section depending on model and 2.5 m long.
- 1 copper cable with PVC insulation of (16, 16, 25, 35, 50 mm2) section depending on model and 15 m long.
- 1 metallic spool to store the 15 m of earthing cable.
- 1 telescopic pole (1.10 m folded and 2 m extended).
- 1 plastic case to store and transport the equipment.
- 1 earthing rod.
- 1 bag to store and transport the pole and the earthing rod.
Specifications
- Brand: Sofamel
- Model: PATL-MCL-4
