Simplex 4090-9002 Addressable Control Module receives both power and communications from a two-wire MAPNET II or IDNet circuit. They provide location-specific addressability to a single initiating device (such as single-station smoke detector alarm contacts or heat detector contacts) or multiple devices at the same location by monitoring normally open dry contacts and the wiring to an end-of-line resistor.
Previous product
Back to products
Streamlight Fire Vulcan Rechargeable LED Lantern
AED 1,386.00 VAT included
Next product
C-Tec EVC301RPO Red Fire Telephone Outstation c/w Handset (push to open)
AED 1,995.00 VAT included

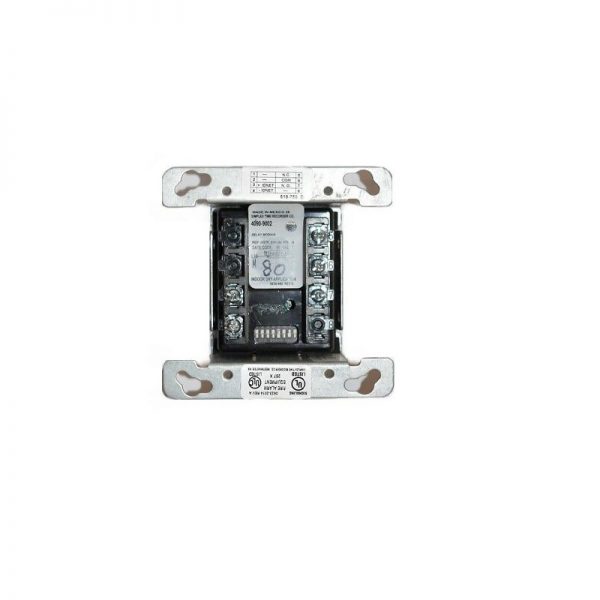

Simplex 4090-9002 Addressable Control Module
AED 999.60 VAT included
Specifications
- Product: Individual Addressable Module
- Brand: Simplex
- Model: 4090-9002
- Power and Communications: MAPNET II or IDNet, auto selected, 1 address per IAM
- Input Requirements: Normally open, dry contacts
- Housing Material: Black thermoplastic
- Dimensions: 1-9/16” W x 1-3/4” H x 1-1/4” D (40 mm x 44 mm x 32 mm)
Features
- Optional covers are available to allow LED to be viewed after installation (requires mounting bracket, ordered separately)
- Supervised Class B monitoring of normally open, dry contacts
- Visible LED flashes to indicate communications
- Mounts in standard single gang electrical box
- Enclosed design minimizes dust infiltration
- Screw terminals for wiring connections
