EuroTech EUM-I Addressable Input Module is a fully monitored device that permits the interfacing of third-party equipment with the Fire Alarm Control panel using normally open dry contact connections. The Green LED will pulse every time the unit is polled by the panel and the Red LED will be ON whenever there is an alarm condition at the module’s input.
Previous product
Back to products
EuroTech EUM-I/O Addressable EUM-I/O Input/ Output Module
AED 141.75 VAT included
Next product
EuroTech EUA-SD Analogue Addressable Photoelectric Smoke Detector (Base Included)
AED 117.60 VAT included

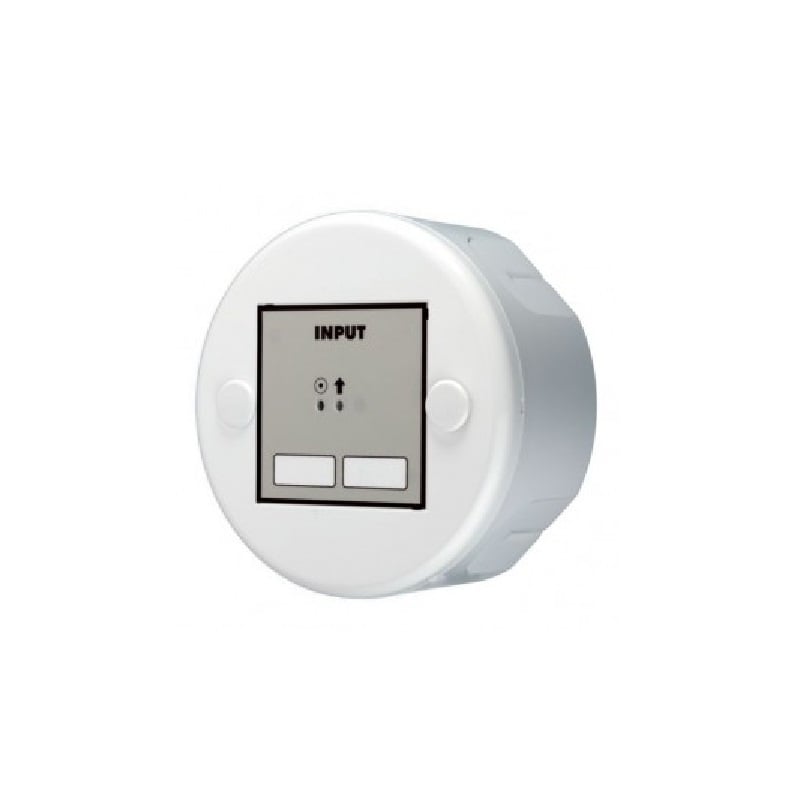

EuroTech EUM-I Addressable Input Module
AED 123.90 VAT included
Specifications
- Product: Addressable Input Module
- Brand: EuroTech
- Model: EUM-I
- Supply Voltage: Loop Powered - 17 V to 30 V DC
- LOOP CURRENT - QUIESCENT: I/P: OK 0.46 - FLT OC 0.33 - FLT SC 0.79 mA
- LOOP CURRENT - ALARM LED ILLUMINATED: 2.0 mA
- MAX. CABLE SIZE: 2.5 mm²
- MAX. HUMIDITY: 95% RH Non-Condensing
- DIMENSIONS: 100 (D) x 48 (H) mm
- WEIGHT - MODULE: 22 g
Features
- The Addressable Input Module is a fully monitored device which permits the interfacing of third party equipment with the Fire Alarm Control panel using normally open dry contact connections
- The interface is used to monitor the contacts of an external system which must be interfaced to the Fire Alarm System
- The connection to the input is monitored for Fault (open or short circuit) and Alarm conditions.
