SIBCA-25mm Test and Drain Valve UL/FM Listed-VIN01-025-K5.6
AED 274.05 VAT included
In stock
Product Code : fs0507803
Brand: SIBCA
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

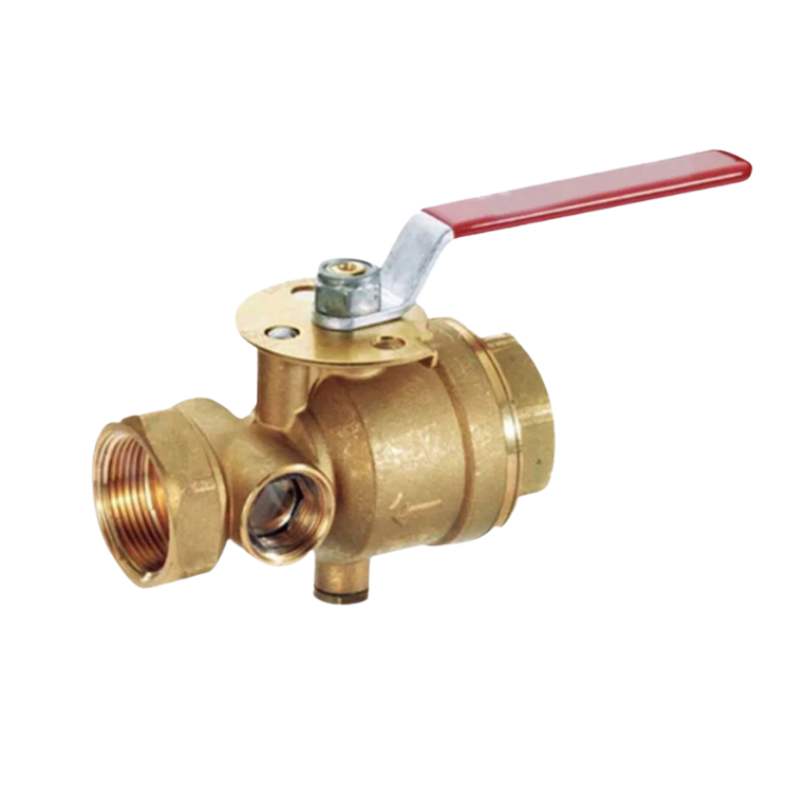

The SIBCA VIN01-025-K5.6 Test and Drain Valve (25mm) is a compact and reliable fire sprinkler system component designed to provide both testing and drainage functions in a single unit. UL and FM certified, this valve is ideal for use in fire sprinkler installations where periodic system testing and controlled drainage are required.
Engineered for durability and performance, the valve ensures accurate flow testing equivalent to a sprinkler head discharge while also allowing safe drainage during maintenance. It is widely used in commercial, residential, and industrial fire protection systems, ensuring compliance with global safety standards.
Features
- Combines test and drain functions
- UL and FM approved
- High-quality brass construction
- Stainless steel internal parts
- Compact design for easy installation
- Suitable for wet sprinkler systems
- Accurate flow control during testing
- Minimizes water wastage
- Long service life with low maintenance
- Compatible with standard fire protection piping
Specifications
- Model: VIN01-025-K5.6
- Size: 25mm (1 inch)
- Approvals: UL Listed / FM Approved
- Body Material: Brass
- Internal Material: Stainless Steel
- Max Pressure: 300 PSI
- Connection: NPT Female
- Function: Test & Drain
- Temperature Range: 0ºC to 80ºC
- Brand: Sibca
