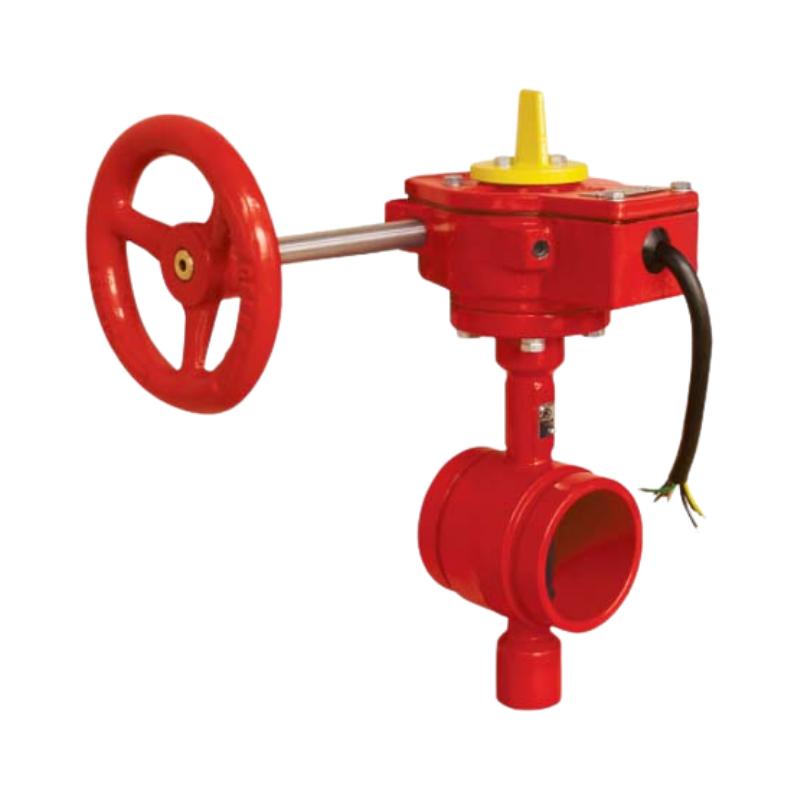

SHIELD Grooved Butterfly Valve 3″ SD-300G-BV
AED 648.38 VAT included
3″ lug-style grooved butterfly valve with EPDM seat, gear operator, and 150psi rating. UL/FM approved for fire protection systems.
In stock
Product Code : fs0507649
Brand: Shield
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The SHIELD SD-300G-BV is a high-performance butterfly valve with grooved ends for easy installation. Features ductile iron body, stainless steel disc, and EPDM seat. Suitable for fire protection, HVAC, and industrial piping systems. Includes gear operator with position indicator.
Features
- Grooved ends for easy installation
- Gear operator with position indicator
- EPDM seat (150psi rating)
- Stainless steel disc (SS316)
- UL/FM approved
- Fire-safe design
- Quarter-turn operation
- OS&Y visual position indicator
- 2" square operating nut
Specifications
- Size: 3" (DN80)
- Pressure Rating: 150psi (10.3bar)
- Temperature Range: -20°F to 250°F
- End Connection: Grooved per AWWA C606
- Seat Material: EPDM
- Body Material: Ductile Iron (65-45-12)
- Disc Material: SS316
- Standards: UL 1091, FM 1320
- Hydro Test: 300psi
- Weight: 18.5lbs (8.4kg)
