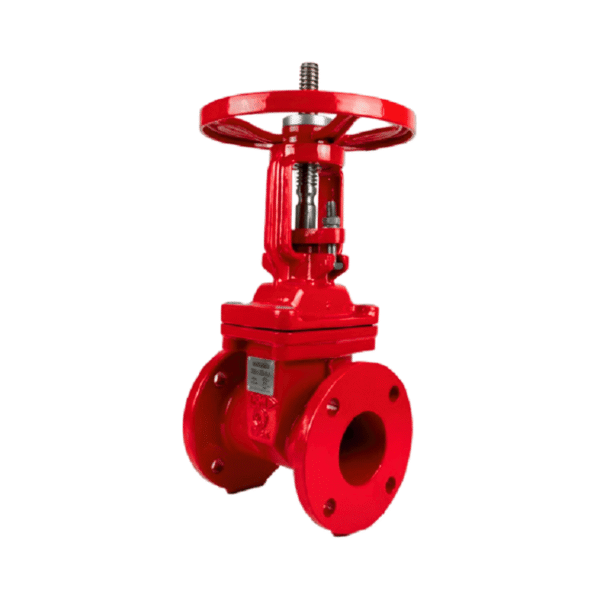

MECH OS&Y Gate Valve Flange x Flange, PN16 – Size: 6″
AED 1,575.00 VAT included
6″ PN16 flanged OS&Y gate valve with rising stem, mechanical operation, and full port design. Suitable for water and general service applications.
In stock
Product Code : fs0507650
Brand: Firesupplies
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
This 6″ PN16 flanged gate valve features outside screw and yoke design with bronze-mounted disc and renewable seats. Includes handwheel operation, ASTM A216 WCB body, and EN 1092-1 PN16 flange faces. Ideal for water supply, fire protection, and industrial piping systems.
Features
- Outside screw and yoke (OS&Y) design
- Rising stem for visual position indication
- Full port (full bore) design
- Bronze-mounted disc
- Renewable seat rings
- Handwheel operation
- PN16 pressure rating
- EN 1092-1 flange faces
- Fire-safe design (optional)
Specifications
- Size: 6" (DN150)
- Pressure Rating: PN16 (16 bar)
- Temperature Range: -29°C to +425°C
- End Connection: RF Flange EN 1092-1
- Body Material: ASTM A216 WCB
- Trim Material: Bronze (ASTM B62)
- Seat Material: 13% Cr Steel + Graphite
- Stem Material: SS410
- Standards: API 600, ISO 10434
- Weight: 98kg (body only)
