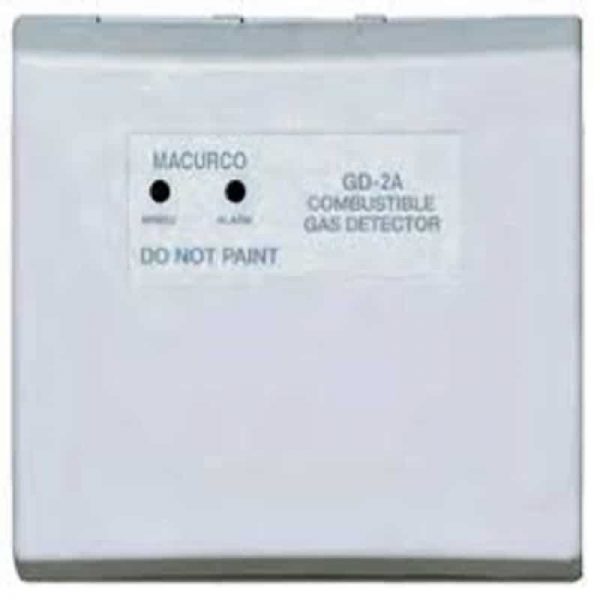

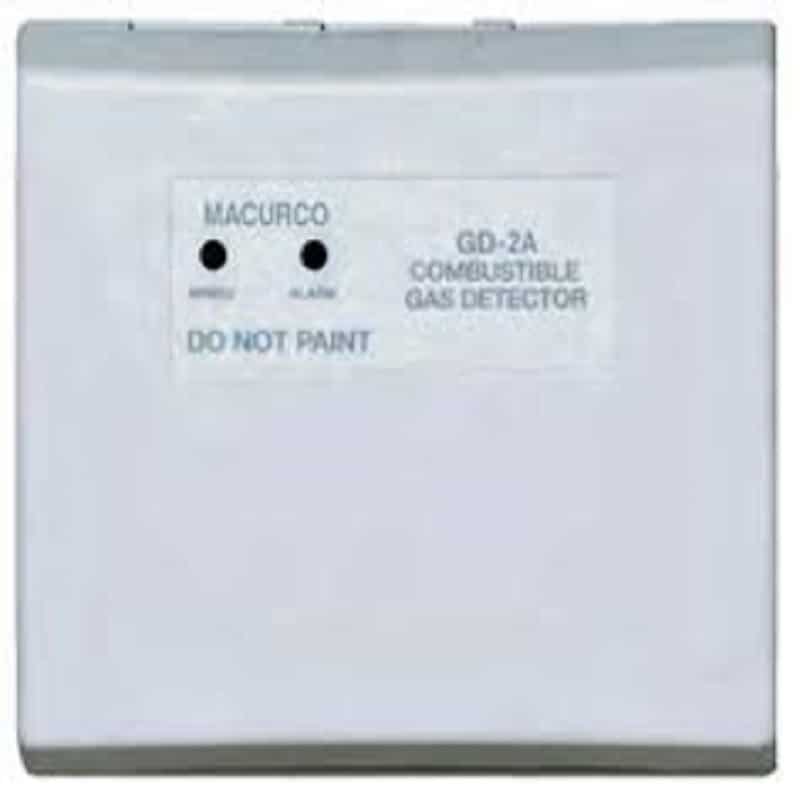

Macurco GD-2A Combustible Gas Detector for use with fire alarm/burglary control panels
AED 614.25 VAT included
The GD-2A is a low voltage electronic detector of combustible, heating type gases. The GD-2A is designed for connection to UL Listed Fire Alarm/Burglary Control Panels. Alarm control panels that work on 12 or 24 VDC can provide battery backup to the GD-2A detectors.
Description
Macurco GD-2A Combustible Gas Detector for use with fire alarm/burglary control panels is a low voltage electronic detector of combustible, heating type gases. The GD-2A is designed for connection to UL Listed Fire Alarm/Burglary Control Panels. Alarm control panels that work on 12 or 24 VDC can provide battery backup to the GD-2A detectors. This product is for use in ordinary indoor locations of family living units and office workspaces. The GD-2A is intended for installation in buildings in non-hazardous locations such as residences, retail stores, office buildings, and institutional buildings. This combustible gas detector has been evaluated by UL for methane (natural gas) and propane (LP) gas. It is NOT designed to detect smoke, fire or carbon monoxide.
Features
- Listed to UL Standard 2075 for the Standard for Safety for Gas and Vapor Detector and Sensors
- Sensitivity tested based on UL 1484 Standard for Residential Gas Detectors
- Solid State Electronic sensors: no maintenance or recalibration
- SPDT Alarm and N.C. Trouble Relay
- California State Fire Marshal Listed
- Simple installation and operation
- Can be self-restoring or latching
- Supervised Sensor
Specifications
- Product: Combustible Gas Detector
- Brand: Macurco
- Model: GD-2A
- Voltage: 12 to 24 VAC or VDC
- Alarm Relay Rating: 0.125 A, 40 V, 3 VA
- Operating Temperature Range: 32° to 120° F
- Alarm Relay Rating: 0.125 A, 40 V, 3 VA
- Alarm Set Point: Per UL 1484, 25% LEL
- Size: 4 ½ x 5 x 1 5/8 inches
- Shipping Weight: 0.54 pound
