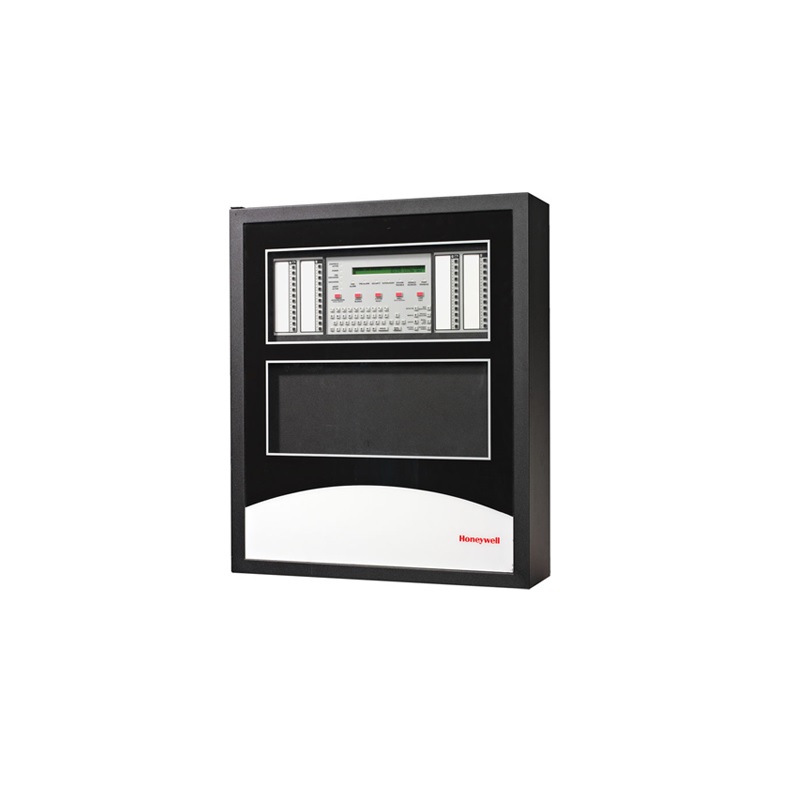

Honeywell XLS140 Intelligent Addressable Fire Alarm System, as a stand-alone small-to-large system, or as a large network, Honeywell’s XLS140 meets virtually every application requirement. Designed with modularity and for ease of system planning, the XLS140 can be configured with just a few devices for small building applications, or for a large campus or high-rise application. Simply add additional peripheral equipment to suit the application.
Previous product
Back to products
Vimpex SG-S-G Smart+Guard Call Point Cover, Surface No Sounder, Green Color
AED 178.50 VAT included
Next product
Vision CP1270M Valve Regulated Rechargeable Battery 7Ah - 12V
AED 65.10 VAT included
Honeywell XLS140 Intelligent Addressable Fire Alarm System
AED 10,106.25 VAT included
The Honeywell XLS3000 is an intelligent Fire Alarm Control Panel (FACP) designed for medium- to large-scale facilities. Fire emergency detection and evacuation are extremely critical to life safety, and the XLS3000 is ideally suited for these applications.
Specifications
- Product: Intelligent Addressable Fire Alarm System
- Brand: Honeywell
- Model: XLS140
- input power: 120 VAC, 50/60 Hz, 3.0 amps.
- output 24 V power: 6.0 A in alarm
- Four-wire detector power: 1.25 A
- Battery charger range: 12 AH – 55 AH
- Float rate: 27.6 V
Features
- Up to 159 detectors (any mix of ion, photo, thermal, or multi-sensor) and 159 modules (manual stations, two-wire smoke, notification, or relay) per SLC. 318 devices per loop/636 per FACP or network node.
- Network option – 103 nodes supported (XLS140, XLS3000, and XLS-NCA/XLS-NCA2 Network Annunciator) using wire or fiber-optic connections.
- 6.0 amp switch mode power supply with four Class A/B builtin Notification Appliance Circuits (NAC). Selectable System Sensor strobe synchronization.
- Standard 80-character display, 640-character large display, or display-less (a node on a network).
- Up to 64 output circuits per FACP or network node; circuits configurable online.
- One, expandable to two, isolated intelligent Signaling Line Circuit (SLC) Style 4, 6 or 7.
- Autoprogramming and Walk Test reports.
- Programmable via XPEDITE configuration software.
- Silence inhibit and Auto Silence timer options.
- Optional universal 636-point DACT.
