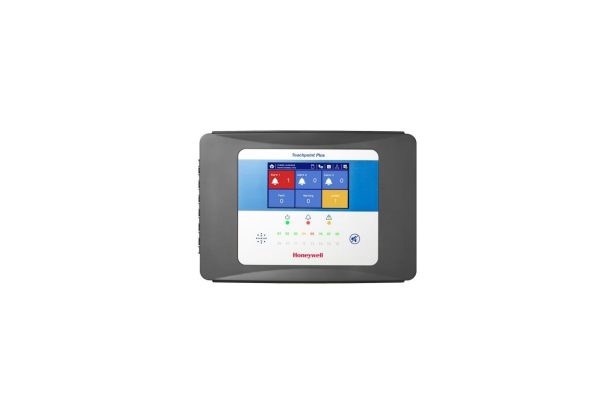

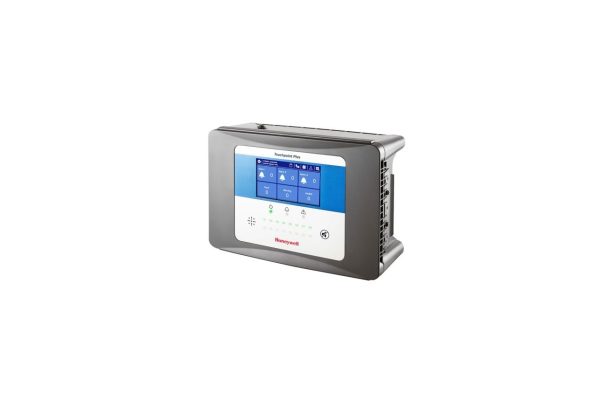

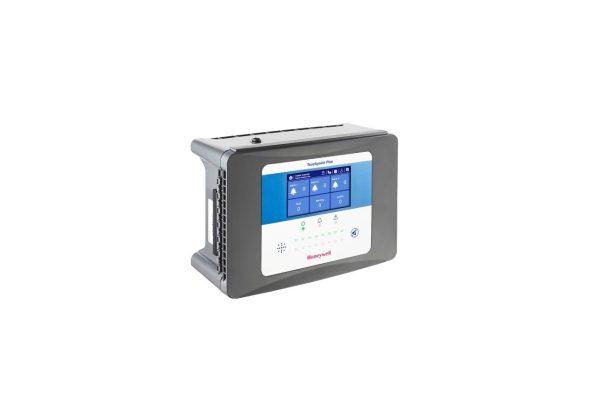

Honeywell Touchpoint Plus Controller (TPPL-BAW-A8-S-NNNNN) Basic Wall Mount, 8 Channels AC115/220 150W, 8 x mA input with 12 x relay output
AED 14,700.00 VAT included
Description
Touchpoint Plus is an easily configurable, wall mounted control system that supports up to sixteen channels of gas detection. Its intuitive user interface and modular approach enables you to take control and configure what you need for a wide range of applications. Features and Benefits: Quick and easy setup and use Intuitive touchscreen user interface Traffic light style status at a glance Ergonomic industrial design Suited to a wide range of industries Quick Specs:8 channels of gas detection (16 with Expansion Unit) Accepts 2 or 3 wire mA or mV inputs Touchscreen LCD Built-in powered alarm outputs Optional Modbus TCP/IP or RTU output
TPPLBAWA8SNNNNN Honeywell (Manning) Controller Basic, Wall Mount, AC115/220 150W, 8 x mA input with 12 x relay output
Configuration Breakdown
The part numberÂ
TPPL-BAW-A8-S-NNNNNÂ decodes to the following specifications:Â - TPPL:Â Touchpoint Plus model
- BAW:Â Basic, Wall-mounted unit
- A:Â AC power (110/220VAC)
- A8:Â 8 channel mA input capacity
- S:Â 12 relay outputs
- N:Â No mA output
- NNNNN:Â No battery backup, no communication modules (e.g., Modbus)Â
Features
- User Interface: A 7-inch color LCD touchscreen interface for easy configuration, operation, and maintenance
- Status Indicators: Clear green, yellow, and red LEDs for at-a-glance system status.
- Flexibility: Compatible with a full range of Honeywell gas detectors and offers flexible configuration options.
- Housing: Made of durable polycarbonate ABS material with an IP65 and NEMA 4X rating, suitable for various industrial environments.
- Power: AC 110/220V power supply
Specifications
- Product: Gas Detection Control Panel
- Brand: Honeywell
- Model: Touchpoint Plus
- Capacity: Up to 8 channels with base unit, up to 16 channels with expansion unit
- Type of inputs: 2 or 3 wires, mA, mV, max. 15W per channel, max 40W total (with dedicated A/V drive) / 68W total (without dedicated A/V drive)
- Size (wall-mounted version): 426 mm x 300 mm x 156 mm (16.8" x 11.8" x 6.1")
- Housing Material: Polycarbonate ABS
- Weight: Max 8.5 kg (18.7 lb), max 17 kg (37.4 lb) with expansion unit
- Display: 7" colour LCD touchscreen. Graphic User Interface
- Power: AC 110/220VAC, 50-60Hz Manual switching
