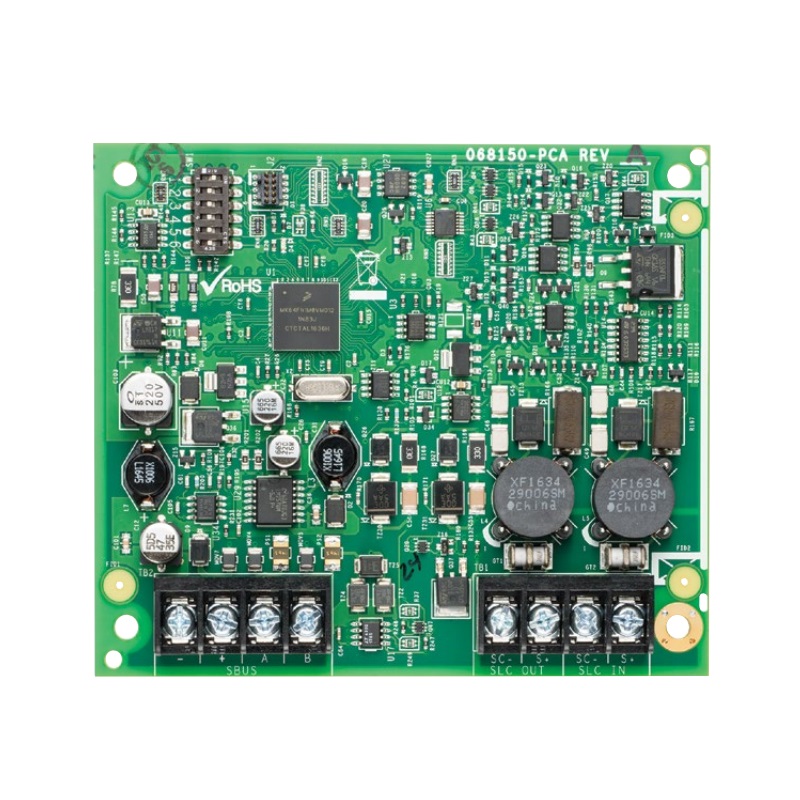

Honeywell SILENT KNIGHT 6815 Signaling Line Circuit Expander
See all products from silent-knightAED 1,296.27 VAT included
Description
Honeywell SILENT KNIGHT 6815 Signaling Line Circuit Expander for use with Honeywell Silent Knight 6820 or 6820EVS fire alarm control panels (FACPs)using System Sensor (SK) protocol. The 6815 signaling circuit has the same functionality as the SLC that is built into the 6820 and 6820EVS panels and supports the same addressable devices as the one in each panel. The number of 6815 SLCs that can be used within one system is largely dependent on the maximum available points. They provide a powerful way to customize configurations in large or complex installs.
Features
- With 1,110 available points on the 6820 and 6820EVS and 6815 SLC flexibility, new design and installation opportunities are now possible.
- Up to two additional 6815 SLCs can be securely housed in one FACP, thus limiting the need for separate housing
- Useful for installations where buildings are connected for multi-site benefits using fiber optic or copper wiring.
- The number of 6815 SLCs that can be used in one system is largely determined by maximum point counts.
- The ability to use multiple 6815 SLCs in these situations provides additional fire system design options.
- Pair with the separate 6860 remote annunciator for additional installation and operating options.
- The 6860 has four programmable buttons that are useful for executing routine or complex tasks.
- Use the 5815RMK mounting kit to securely house more SLCs within one system.
Specifications
- Product: Signaling Line Circuit Expander
- Brand: SILENT KNIGHT
- Model: 6815
- 6815 Capacity: 159 SK sensors and 159 SK modules per loop
- Standby & Alarm Current: 78mA max
- Dimensions: 4.2"H x 4.8"W (10.7 x 12.2 cm)
- Shipping Weight: 5.6oz (159g)
