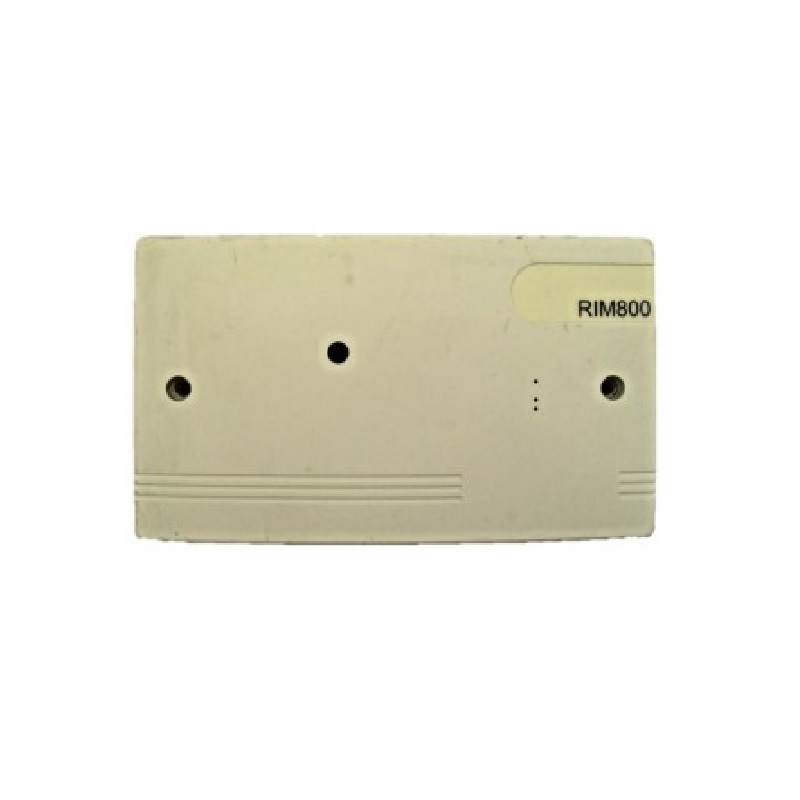

Tyco RIM800 Relay Interface Module with M520 Front Cover Minerva MX Addressable Relay Interface Module provides one volt-free changeover contact output unsupervised. The relay is controlled by a command sent from the Tyco MX Control and Indicating Equipment (c.i.e.) via the MX addressable loop and may be used to signal states to other systems (e.g. security systems) or to energize loads such as Door Holders.
Features
- The RIM800 is supplied as an open circuit board (PCB) with mounting hardware and must be fitted in a suitable enclosure
- MX addressable loop and may be used to signal states to other systems or to energize loads such as Door Holders
- The RIM800 Addressable Relay Interface Module provides one volt-free changeover contact output unsupervised
- The relay is controlled by a command sent from the Tyco MX Control and Indicating Equipment
- The relay operation is determined by the c.i.e. programming
- Addressable changeover volt-free relay contact
- LED indication of relay operation
- Common MX module footprint
- Range of mounting enclosures
Specifications
- Product: Relay Interface Module
- Brand: Tyco
- Model: RIM800
- Loop Voltage: 20V to 40Vdc
- Relay Contact: (maximum) 2A @ 30Vdc
- Max. RIM800 per Loop: 200/250
- Quiescent Current: 285µA
- Alarm State Current: 2.8mA
- Dimensions (HWD): 61 x 84 x 25 mm
- Wire Size (maximum): 2.5sq. mm
