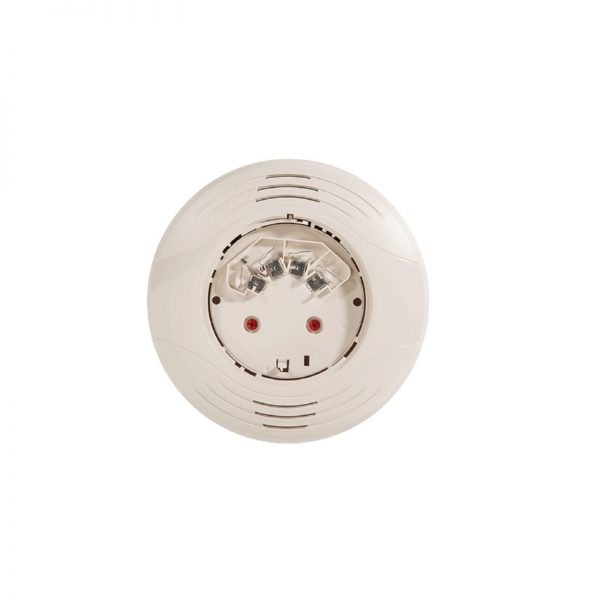

Honeywell EBS Intelligent Sounder Base
AED 696.15 VAT included
Honeywell EBS Intelligent Sounder Base was designed specifically to meet the needs of dwelling unit applications. It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464. The sounder base is capable of producing either the distinctive three-pulse temporal pattern (ANSI Temporal 3) fire alarm signal now required by NFPA 72 for commercial and residential applications or a continuous tone by simply removing the included jumper from the device.
Description
Honeywell EBS Intelligent Sounder Base was designed specifically to meet the needs of dwelling unit applications. It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464. The sounder base is capable of producing either the distinctive three-pulse temporal pattern (ANSI Temporal 3) fire alarm signal now required by NFPA 72 for commercial and residential applications or a continuous tone by simply removing the included jumper from the device.
The sounder base is intended for use with intelligent systems. The sounder base requires an external 24 VDC power supply. The connections for the external power supply and the communication loop are isolated to prevent electrical interaction between them. Refer to the panel manual for the maximum allowable number of units per loop.
Features
- It offers maximum flexibility in configuration and operation to meet or exceed the requirements of UL268 and UL464
- sounder base was designed specifically to meet the needs of dwelling unit applications
- sounder base is capable of producing either the distinctive three-pulse temporal pattern
- fire alarm signal now required by NFPA 72 for commercial and residential applications
- continuous tone by simply removing the included jumper from the device.
- The sounder base is intended for use with intelligent systems
- base requires an external 24 VDC power supply
Specifications
- Product: Addressable Sounder Base
- Brand: Honeywell
- Model: EBS
- Base Diameter: 6.85 in (17.4 cm)
- Base Height (less sensor): 1.61 in (4.1 cm)
- Operating Temperature Range: Refer to applicable sensor Operating Temperature Range using the Base/Sensor
- Operating Humidity Range: 10% to 93% relative humidity (Non-condensing)
- External Supply Voltage: 16 to 33 VDC (VFWR)
- Standby Current: 500 μA maximum
