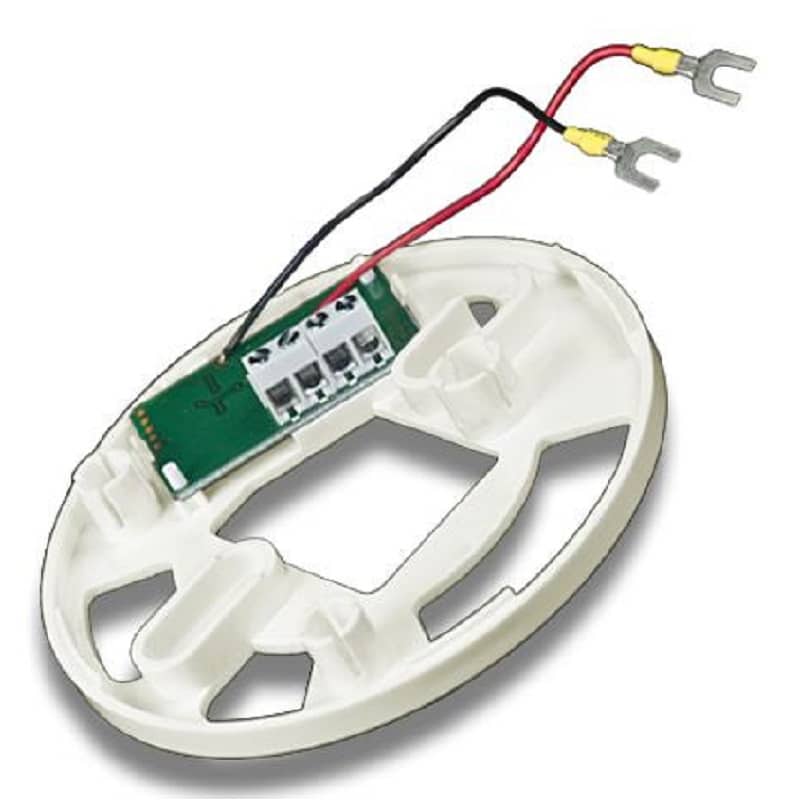

Hochiki YBN-R/3(SCI)-OEM Short Circuit Isolator Adapter
See all products from hochikiAED 56.18 VAT included
The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base.
This combined unit will then detect and isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address.
In stock
Product Code : fs107054
Brand: Hochiki
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The YBN-R/3(SCI)-OEM is an adaptor featuring an integral short-circuit isolator, which has been designed to be fitted to a standard sensor mounting base (YBN-R/3) to convert it into a short-circuit isolator base.
This combined unit will then detect and isolate short-circuits on the loop. When a short-circuit is detected the combined unit will drop the power to the rest of the loop. The combined unit is compatible with the ESP range of sensors and does not require a loop address.
A remote fire LED facility is provided when a sensor is attached to the combined unit. This product is sold in a boxed quantity of 10 pieces (unit price shown). NOTE: A fitted sensor will still be powered when this device is isolating.
Features
- Electronics free
- Supports the ESP Sensors
- Stainless steel contacts
- Takes 2.5 mm cables
- Slim profile - only 8 mm
- Rugged wiring contacts
- Facility for remote indicator
- Quick Connection via square cable clamps
- Base Not Included
Specifications
- Fixing Centres: 48 mm through to 74 mm
- Humidity: 10% to 95% RH (at 40C)
- Operating Voltage: 19 - 41 V dc (24 V dc nominal)
- Standby Current: 60 µA
- Temperature Range: -10C to +50C
- Wire Size: 2.5 mm²/terminal
- Weight: 79g
