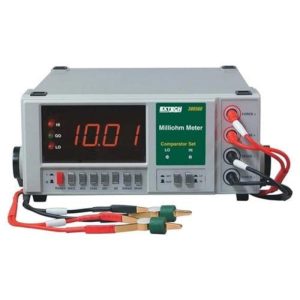

Extech - High Resolution Precision Milliohm Meter - 380562
AED 2,359.00 VAT included
Extech – Single Phase/Three Phase 1000A AC Power Clamp Meter Kit – 380976-K
AED 1,414.00 VAT included

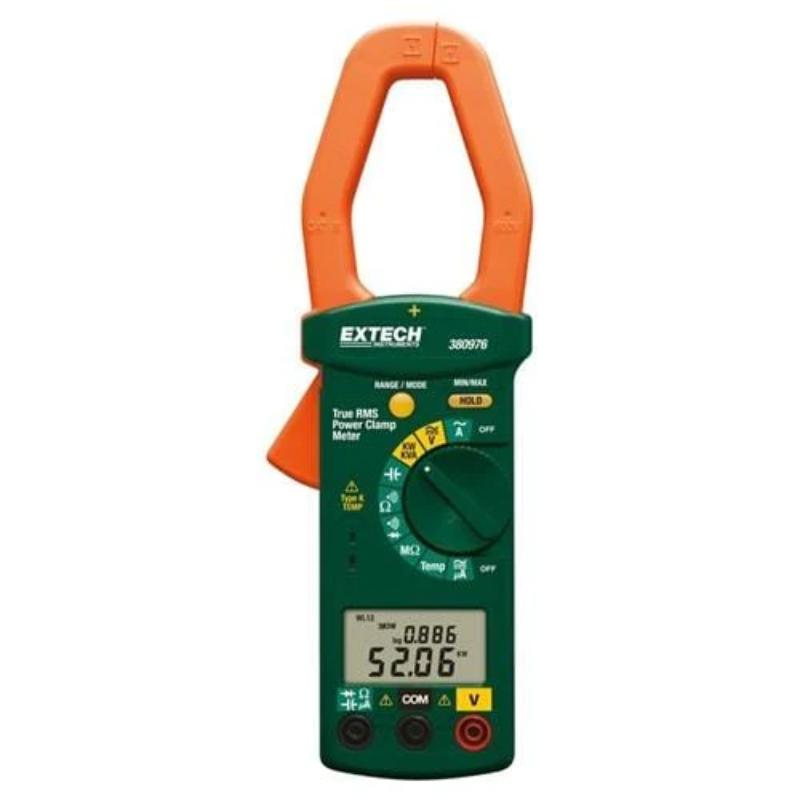

Extech – Single Phase/Three Phase 1000A AC Power Clamp Meter Kit – 380976-K
Product Code : fs0506296
Brand: Extech
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The 380976-K is a Single Phase/3 Phase 1,000 Amp AC Power Clamp Meter Kit. Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator. Auto Detect AC/DC Voltage measurements with simultaneous frequency display. In addition, the supplied test lead kit includes two CAT IV 72″ test leads, 2 modular test probe handles, 2 plunger activated jaw clips, and 2 extra-large alligator clips. Complete with test lead kit, Type K probe, carrying case and 9V battery.
Features
- 1.6" (40mm) clamp jaw opening and large dual LCD display (9999 count)
- Measures 1/3-Phase True Power (kW), Apparent Power (kVA), Reactive Power (kVAR), Horsepower (HP), Power Factor, and Phase Angle with Lead/Lag indicator
- AC+DC µA current with 10nA resolution for flame rod tests
- Auto Detect AC/DC Voltage measurements with simultaneous frequency display
- Capacitance to 7000µF with 0.001µF resolution
- High Resistance tests to 100MOhm
- Type K, °C/°F switchable, temperature to 1000°F
- Diode and continuity tests
- Complete with test lead kit, general purpose Type K thermocouple probe, carrying case, and 9V battery
Specifications
- Brand: Tekneka
- Product: Single Phase/Three Phase 1000A AC Power Clamp Meter Kit
- Model: 380976-K
- True Power (W): 600kW / 10W
- Frequency: 40Hz to 1kHz / 0.1Hz
