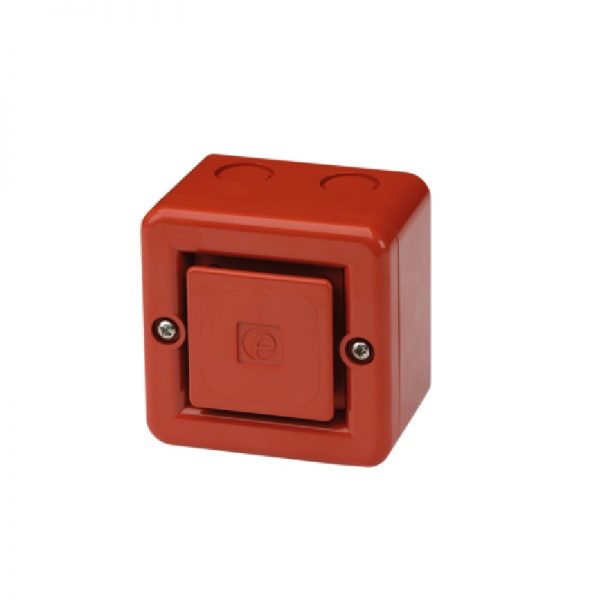

E2S SONF1 24V dc (10-30V dc) Red Sonora Alarm Horn Sounder

Name: E2S SONF1 24V dc (10-30V dc) Red Sonora Alarm Horn Sounder
SKU: fs05022308
Availability: InStock

AED 672.00 VAT included

Compare

Product Code : fs05022308 Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

E2S SONF1 24V dc (10-30V dc) Red Sonora Alarm Horn Sounder is a compact, high output, 100dB(A) alarm sounder. Low current consumption and high SPL in robust fire retardant housing ensure it is suitable for general signaling applications including fire, security, and process control. Sonora range offers compact audiovisual signaling for fire, industrial, process control, and machine safety applications. The range features low current consumption combined with high performance. The SONF1 is available with two levels of sound level output and is CPR compliant (tested to EN54-3) for fire alarm use. Approved by VdS and UL.

Features

Mounting via internal BESA compatible fixing positions (standard version) or via external mounting lugs.
Duplicate cable terminations (in & out for daisy-chain installations).
Available with custom tone configurations and frequencies.
Automatic synchronisation on multi-sounder system.
Tropicalisation available on request.
Stainless steel fixings.
Continuously rated.

Specifications

Product: Alarm Horn Sounder
Brand: E2S
Model: SONF1
Voltages DC: 24V dc (10-30V dc) Reverse polarity diode protection on DC units. MED version: 20-30V dc
Maximum output: 100dB(A) @ 1 metre [91dB(A) @ 10ft/3m]
No. of tones: 10 (UKOOA / PFEER compliant)
Effective range: 30m/98.4ft @ 1KHz
Ingress protection: IP66 (UL version Type 13 & 3R )
Housing material: High impact UL94 V0 & 5VA FR ABS
Weight: 0.30kg/0.66Ibs
