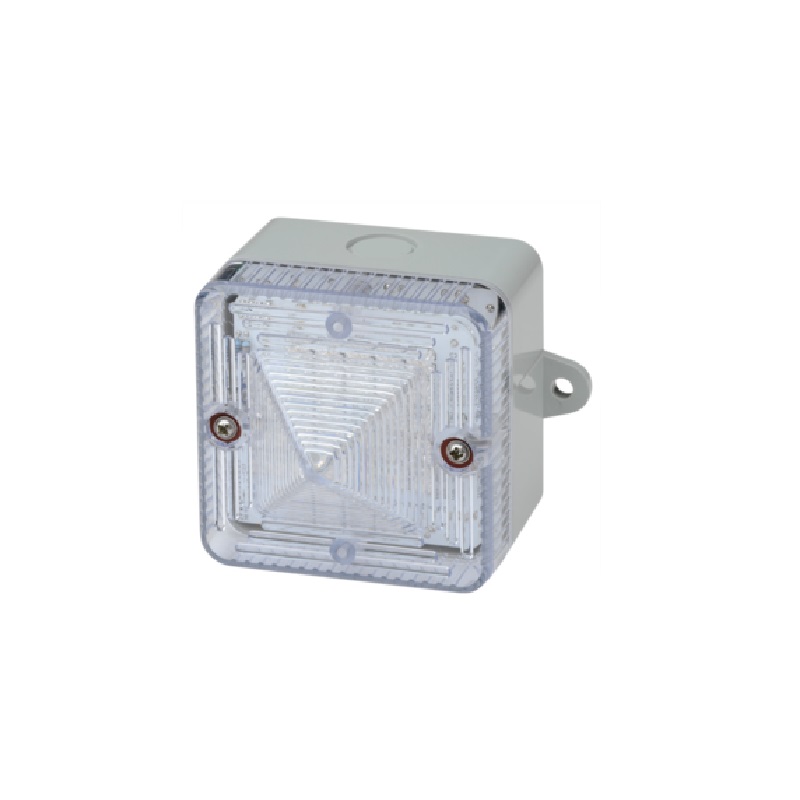

E2S L101H LED 10-30V dc Rd/Rd Alert Light Robust L.E.D Array Beacon ideal for all general signaling applications including status indication, security, and process control. The array of 24 Superflux type high output L.E.D’s generates over 120 candelas of light output and can be user set to either steady or flashing mode. Available in cULs approved version for general signaling use.
Previous product
Back to products
E2S SONF1 24V dc (10-30V dc) Red Sonora Alarm Horn Sounder
AED 672.00 VAT included
Next product
E2S SONFL1H 24V dc Red/Red Sonora Alarm Sounder & High Output LED Beacon
AED 631.05 VAT included
E2S L101H LED 10-30V dc Rd/Rd Alert Light Robust L.E.D Array Beacon
AED 420.00 VAT included
Specifications
- Product: L.E.D Array Beacon
- Brand: E2S
- Model: L101H
- Light source: High intensity L.E.D. array. 24 x Superflux type high ouput L.E.D’s
- Options: Steady or 2Hz flash mode (on board selection)
- Peak/Effective Intensity cd: Green L.E.D: 176cd – measured ref. to I.E.S
- Terminals: 0.5 to 4.0mm² cables
- Housing material: UL94V0 & 5VA FR ABS
- Ingress Protection: IP66 Type 4/4X/13/3R
- Weight: 0.20kg/0.44Ibs
Features
- Can be combined with AlertAlarm & Sonora audible signals
- Back boxes available with and without mounting lugs
- Can be stacked to create multi-signal units.
- Tropicalisation available on request
