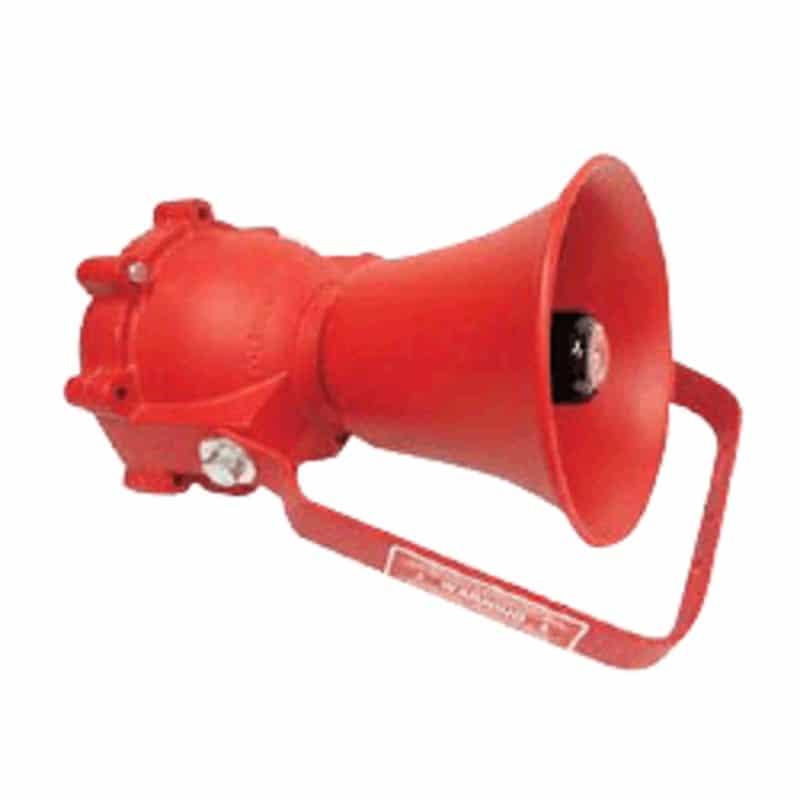

CPG Signals ASHX PowerTone Explosion Proof Speaker


Seller :


CPG Signals Model ASHX PowerTone Explosion-proof Amplified Speaker is designed for use in hazardous locations and produces a crisp clear high decibel tone. The tone may be generated by a voice or tone generating system by a compact, solid-state, plug-in card. Speaker cone and projector are of spun aluminum, the circuitry, speaker driver and tone card are contained in an explosion-proof housing.

Internal gain control allows for volume adjustment. The amplified speaker is listed for indoor/outdoor use, NEMA 3 rated and is finished in red enamel. Model ASHX Amplified Speakers operate at 24 VDC and are polarized for connection to system supervised alarm notification circuits. The weatherproof and corrosion-resistant surface-mount speaker is required.

Seller :

  • Product: Explosion Proof Speaker
  • Brand: CPG Signals by Potter
  • Model: ASHX-24SMR
  • Operating Voltage: 24 VDC Polarized
  • Current Draw: .26A
  • Material: Speaker: Spun Aluminum, Housing: Die-Cast Aluminum
  • Operating Temperature Range: -40°F to 151°F
  • Frequency Response: 400-4000Hz
  • UL dB(A) Sound Pressure: 96.7
  • dB(A) Sound Power: 116.8
  • Dimensions: 14 13/16” H x 8 7/8” W x 14 3/4” D
  • Shipping Weight (Approx.): 15 LBS
  • Mount Type: Surface Mount
  • Color: Red
  • Multiple tone capability
  • A wide selection of tones (single tone applications) U-TC
  • Voice capable with PTCK audio interface card
  • Internal gain control
  • NEMA 3 rated enclosure
  • Indoor and outdoor mounting
  • Rugged explosion-proof circuitry housing
