Description

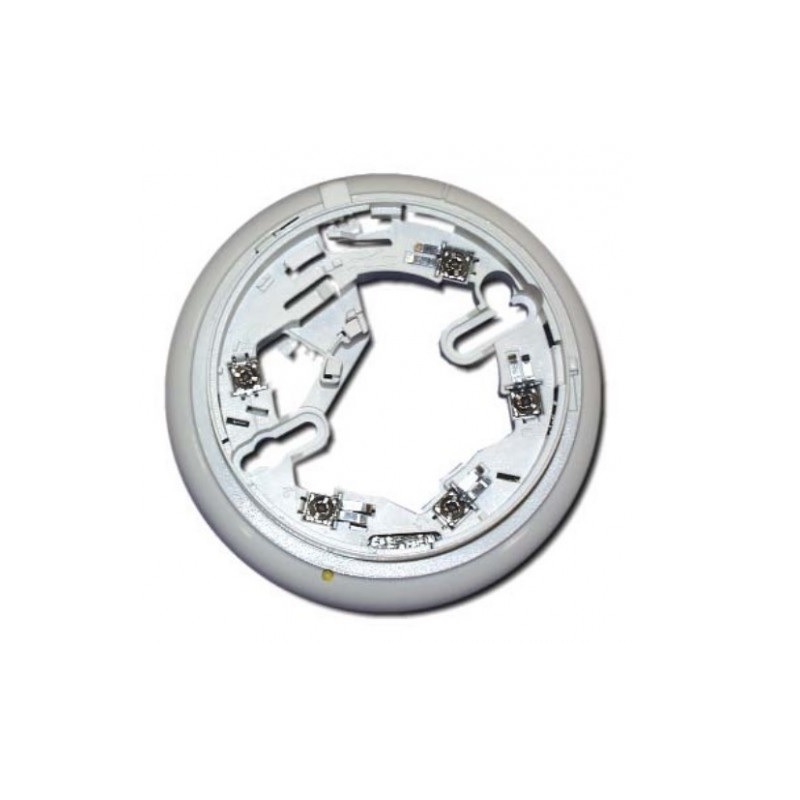

Tyco 517.050-017 5B Universal Detector Base is compatible with both the 614 collective series and the MX analogue addressable series of detectors and functional bases. It is intended for a two-wire operation. With a detector mounted in the base, a raised rib on both base and detector is aligned when the detector is in the full home position.
The base should be fixed such that the park plunger faces toward the door or trafficable area. This ensures the detector LED will be visible from the direction of entry, in accordance with AS1670.1-2004.
Features
- The 5B Universal Base is compatible with both the 614 collective series and the MX analogue addressable series of detectors and functional bases
- The 5B base should be fixed to a suitable flat surface strong enough to take the weight of the base and detector
- A raised rib on both base and detector is aligned when the detector is in the fully home position
- The base should be fixed such that the park plunger faces toward the door or trafficable area
Specifications
- Product: Universal Detector Base
- Brand: Tyco
- Model: 5B
- Part No: 517.050-017
- Relative Humidity: 10% to 95% (non cond.)
- Storage Temperature: –40°C to +80°C
- Ambient Temperature: –25°C to +75°C
- Height: 24mm
- Diameter: 127mm
- Weight: 63g
