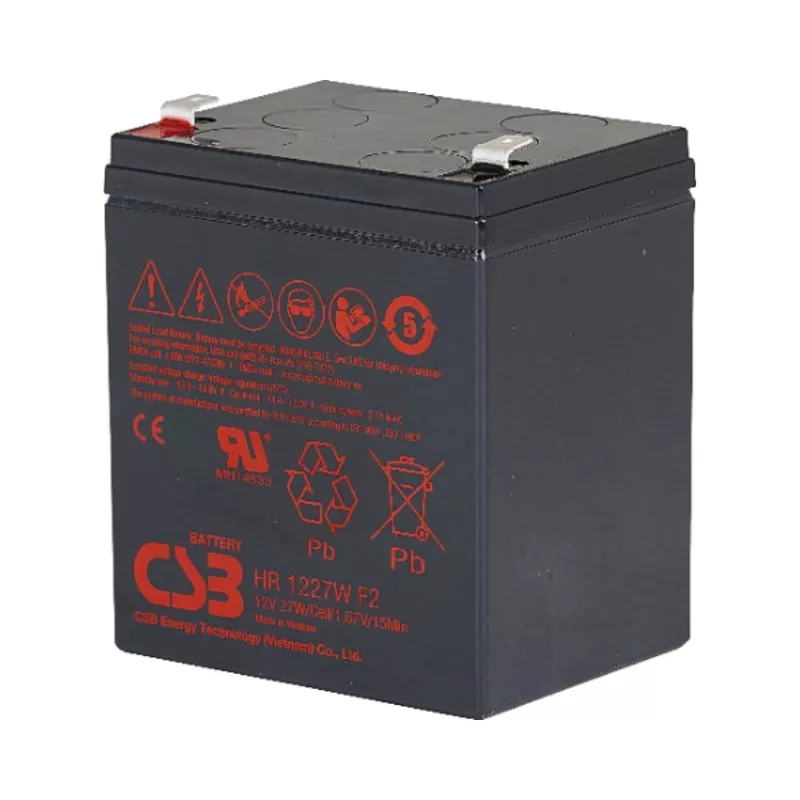

CSB HR1227W – 12V 27W High-Rate VRLA-AGM Battery
AED 129.15 VAT included
12V 27W @15min-rate High-Rate sealed lead-acid battery with AGM technology for reliable backup power applications.
Description
The CSB HR1227W is a premium 12V VRLA (Valve Regulated Lead Acid) battery from the HR Series. With a capacity of 27W @15min-rate, this maintenance-free battery features advanced AGM (Absorbent Glass Mat) technology ensuring up to 99% gas recombination efficiency. Constructed with pure lead elements and proprietary materials, it delivers reliable performance with a design life of up to 5 Years in standby service at 25°C. The battery features F2-Faston Tab 250 terminals, weighs 1.97 kg (4.34 lbs), and measures 90.0×70.0×106.1mm. Ideal for UPS systems, emergency lighting, security systems. Built to IEC 61056-1/2:2012 standards and UL1989 recognized (MH14533). Operating temperature range: -15°C to 50°C discharge, -15°C to 40°C charge/storage. Float charging voltage: 13.5-13.8 VDC. Maximum discharge current: 130A, with internal resistance of approximately 19.9 mΩ.
Features
- VRLA (Valve Regulated Lead Acid) Technology
- AGM (Absorbent Glass Mat) with 99% Gas Recombination
- Maintenance-Free Sealed Construction
- Pure Lead Construction for Enhanced Performance
- Design Life: Up to 5 Years at 25°C
- Wide Operating Temperature: -15°C to 50°C
- UL1989 Recognized (MH14533) Certified
- IEC 61056-1/2:2012 Compliant
- Spill-Proof and Leak-Proof Design
- Low Self-Discharge Rate (Less than 10% after 90 days)
Specifications
- Model: CSB HR1227W
- Series: HR Series
- Voltage: 12V
- Capacity: 27W @15min-rate
- Weight: 1.97 kg (4.34 lbs)
- Dimensions (L×W×H): 90.0×70.0×106.1mm
- Terminal Type: F2-Faston Tab 250
- Max Discharge Current: 130A
- Internal Resistance: 19.9 mΩ
- Float Charging Voltage: 13.5-13.8 VDC at 25°C
