CSB GP12120F2 – 12V 12Ah General Purpose VRLA-AGM Battery
AED 203.70 VAT included

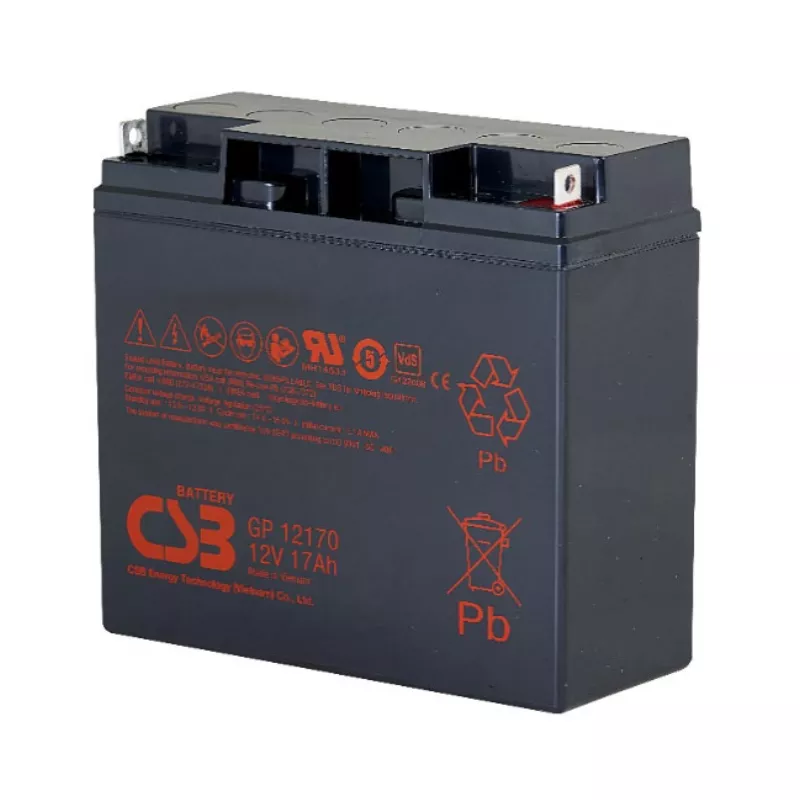

CSB GP12170B1 – 12V 17Ah General Purpose VRLA-AGM Battery
AED 234.36 VAT included
12V 17Ah @20hr-rate General Purpose sealed lead-acid battery with AGM technology for reliable backup power applications.
Description
The CSB GP12170B1 is a premium 12V VRLA (Valve Regulated Lead Acid) battery from the GP Series. With a capacity of 17Ah @20hr-rate, this maintenance-free battery features advanced AGM (Absorbent Glass Mat) technology ensuring up to 99% gas recombination efficiency. Constructed with pure lead elements and proprietary materials, it delivers reliable performance with a design life of up to 5 Years in standby service at 25°C. The battery features B1/B1B/B3 M5 Bolt terminals, weighs 5.50 kg (12.12 lbs), and measures 181.0×76.2×167.0mm. Ideal for Alarm systems, emergency lighting, medical equipment, telecom. Built to IEC 61056-1/2:2012 standards and UL1989 recognized (MH14533). Operating temperature range: -15°C to 50°C discharge, -15°C to 40°C charge/storage. Float charging voltage: 13.5-13.8 VDC. Maximum discharge current: 230A, with internal resistance of approximately 14.0 mΩ.
Features
- VRLA (Valve Regulated Lead Acid) Technology
- AGM (Absorbent Glass Mat) with 99% Gas Recombination
- Maintenance-Free Sealed Construction
- Pure Lead Construction for Enhanced Performance
- Design Life: Up to 5 Years at 25°C
- Wide Operating Temperature: -15°C to 50°C
- UL1989 Recognized (MH14533) Certified
- IEC 61056-1/2:2012 Compliant
- Spill-Proof and Leak-Proof Design
- Low Self-Discharge Rate (Less than 10% after 90 days)
Specifications
- Model: CSB GP12170B1
- Series: GP Series
- Voltage: 12V
- Capacity: 17Ah @20hr-rate
- Weight: 5.50 kg (12.12 lbs)
- Dimensions (L×W×H): 181.0×76.2×167.0mm
- Terminal Type: B1/B1B/B3 M5 Bolt
- Max Discharge Current: 230A
- Internal Resistance: 14.0 mΩ
- Float Charging Voltage: 13.5-13.8 VDC at 25°C
