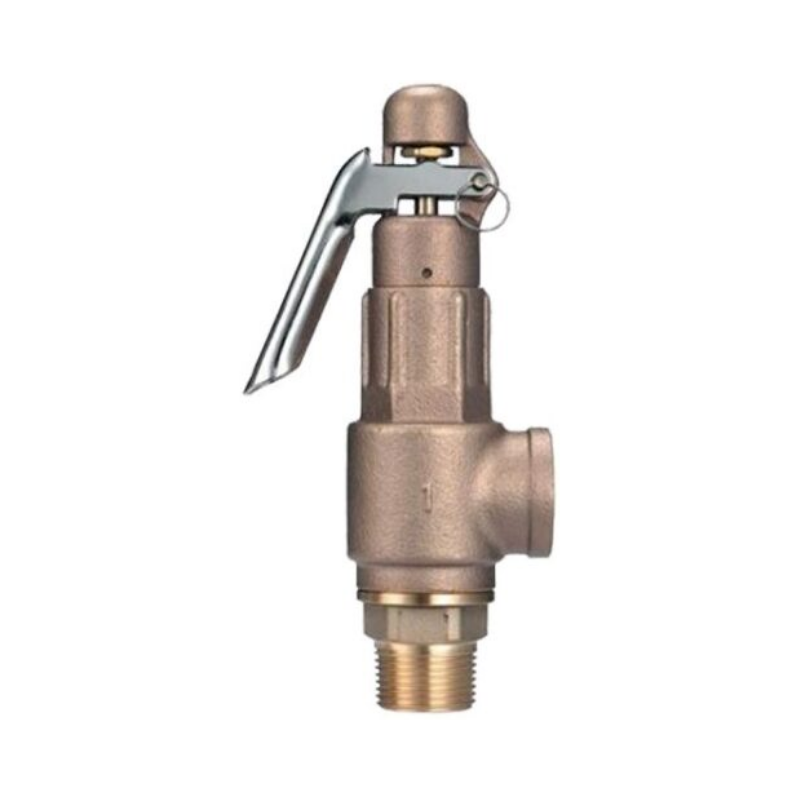

BRONZE Safety Valve 1/2″ 20Bar with Liver L3
AED 354.38 VAT included
1/2″ bronze safety relief valve with 20Bar set pressure, lifting lever (liver), and adjustable blowdown. ASME Section I compliant.
In stock
Product Code : fs0507667
Brand: Firesupplies
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The 1/2″ bronze safety valve features a spring-loaded mechanism with 20Bar (290PSI) set pressure, integrated lifting lever (“liver”) for manual testing, and adjustable blowdown (3-7%). Suitable for steam, hot water, and compressed air systems up to 150°C.
Features
- Integrated lifting lever ("liver")
- 20Bar set pressure (factory preset)
- Adjustable blowdown (3-7%)
- 1/2" BSPP female threads
- ASME Section I compliant
- Spring-loaded mechanism
- EPDM seat (150°C max)
- Manual test capability
- Natural bronze finish
Specifications
- Size: 1/2" (DN15)
- Connection: BSPP Female
- Set Pressure: 20Bar ±5%
- Max Overpressure: 22Bar
- Blowdown: 3-7% adjustable
- Body Material: Bronze (CC491K)
- Spring: 316 Stainless Steel
- Lever: Forged Brass
- Temperature Range: -20°C to +150°C
- Standards: ASME I, PED 2014/68/EU
