1.5 Inch Type C Camlock Fitting is built to perform and to last. Aluminum cam and groove adapters are produced according to A-A-59326(replaced Mil-C-27487) orEN14420-7(replaced DIN2828). Size range is from 1/2? to 8?. Camlock fittings of different manufacturers are interchangeable, but A-A-59326/Mil-C-C27487 doesn?t require the interchange of 1/2?(12.7mm) 5?(127mm) and 8?(203.2mm). EN14420-7/DIN2828 is interchangeable with A-A-59326, but the hose end of them are different. Camlock fittings provides a simple and reliable way to connect and disconnect hoses, which is more efficient and economical than threaded or flanged joints. Camlock fittings is suitable for transporting heavy oil, kerosene, water, hydraulic oil, oil and fuel, or acid and alkaline chemicals, with the advantages of quick connection and flexible disassembly.
Previous product
Back to products
2.5 Inch NST Coupling - Brass
AED 367.50 VAT included
Next product
1.5 Inch Type F Camlock Fitting - Aluminium Hose
AED 25.20 VAT included

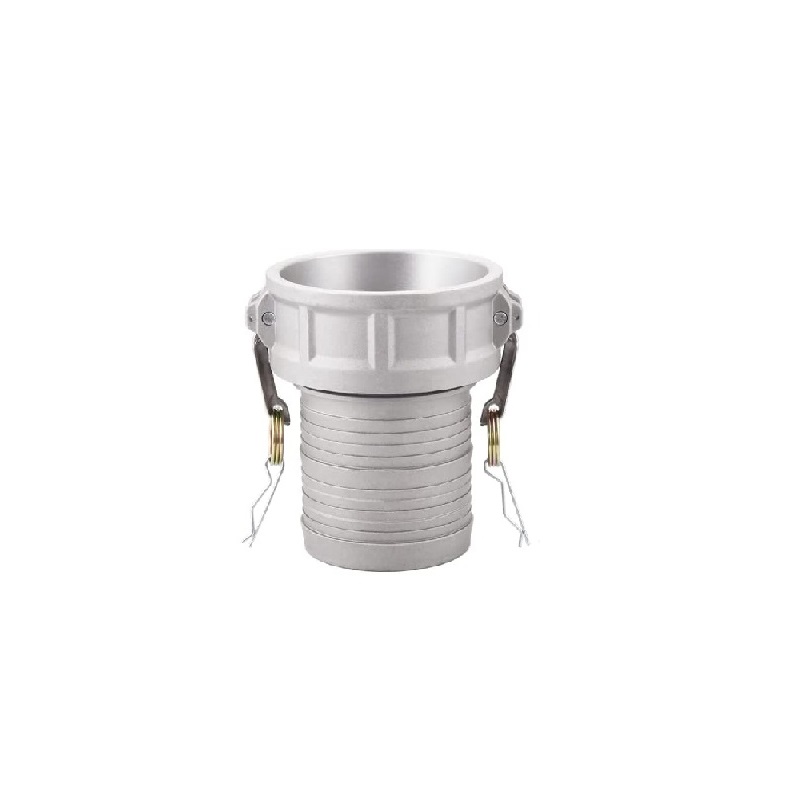

1.5 Inch Type C Camlock Fitting – Aluminium Hose
AED 31.50 VAT included
1.5 Inch Type C Camlock Fitting is built to perform and to last. The simplest and easiest quick connection system for larger diameter hoses. Heat treated for increased service life and brass locking handles for a rust free secure connection each and every time. This style c fitting is rated to 250 psi so this cam and groove coupling can deliver under strong water pressure.
Product Code : fs0503969
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: 1.5 Inch Type C Camlock Fitting
- Material: Aluminum
- Size: 1.5 Inch
- Connector Type: Barb
- Handle: Stainless steel or Brass
- Gaskets?NBR,PTFE,viton,EPDM etc
- Working pressure :50-250 Psi( depending on size and temperature)
- Operating temperature :-40 to 145?(depending on the rubber ring material)
- Manufacture method?gravity casting
Features
- One end is the female cam coupler end and the other end is the barb for connecting the hose
- Made of high quality Aluminium, corrosion resistant
- Widened locking lever made of stainless steel
- Quick Disconnect or Connect
- Economy, light weight, convenience, interchangeability
- Good corrosion and chemical resistance
- Connect without tools
