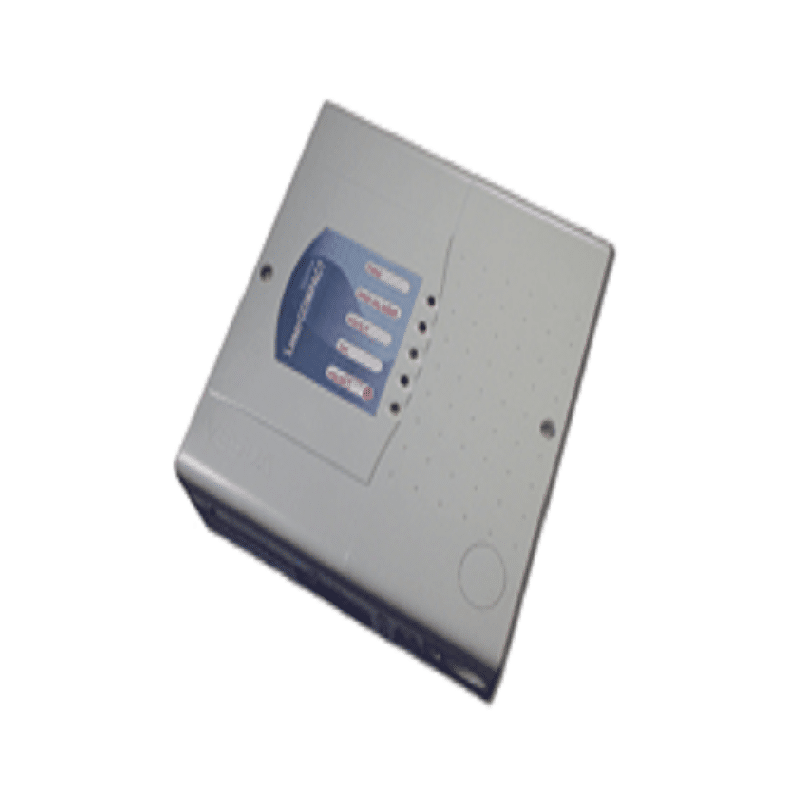

Vesda VLC-50000-MRN Laser Compact Marine Aspirating Smoke detector

Name: Vesda VLC-50000-MRN Laser Compact Marine Aspirating Smoke detector
SKU: FS107263
Price: 12106.50 AED
Availability: InStock

See all products from vesda

AED 12,106.50 VAT included

The VESDA VLC Marine by Xtralis is a tested and certified aspirating smoke detector for use in marine environments. The VESDA VLC Marine aspirating smoke detector is available in two versions, one that interfaces via relays only (RO) and one that interfaces via relays and VESDAnet (VN).

In stock

Compare

Product Code : FS107263 Brand: Vesda Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Features

Absolute smoke detection (coverage of 800m2 or 8,000 sq. ft.)
Wide sensitivity range (0.005 - 20% obscuration/m and 0.0015 - 6% obscuration/ft)
Single pipe inlet
Five (5) status LEDs
Referencing
VESDAnet communication (VN)
Clean air barrier optics protection
Three (3) alarm levels
Three (3) programmable relays
Air flow monitoring, Optional remote display and relay capability, Simple mounting design, AutoLearn

Specifications

Supply voltage: 18 to 30VDC
Power consumption: 5.4W quiescent, 5.9W with alarm
Current consumption: 225mA quiescent, 245mA with alarm
Fuse rating: 1.6A
Dimensions (WHD): 225mm x 225mm x 85mm (8 7/8-in x 8 7/8-inx 3 3/8-in)
Weight: 1.9kg (4.2lbs.)
Operating conditions: Tested to -25°C to 70°C (-13°F to 158°F); Ambient 5°C to 70°C (41°F to 158°F) (recommended); Sampled Air -20°C to 60°C (-4°F to 140°F)
Humidity: 10 to 95% RH, non-condensing
Sampling network: Maximum area of Coverage 800sq.m (8000sq.ft)
Maximum pipe lengths: 1 x 80m, 2 x 50m
Computer design tool: ASPIRE2
IP rating: IP30 (optional IP66 enclosure)
Cable access: 4 x 25mm (1-in) cable entries
Cable termination: Screw Terminal blocks 0.2-2.5sq mm (30-12 AWG)
Sensitivity range: 0.005 to 20% obs/m (0.0015 to 6.25% obs/ft)
