Name: Swing Check Valve Grooved End
SKU: fs050571
Availability: InStock

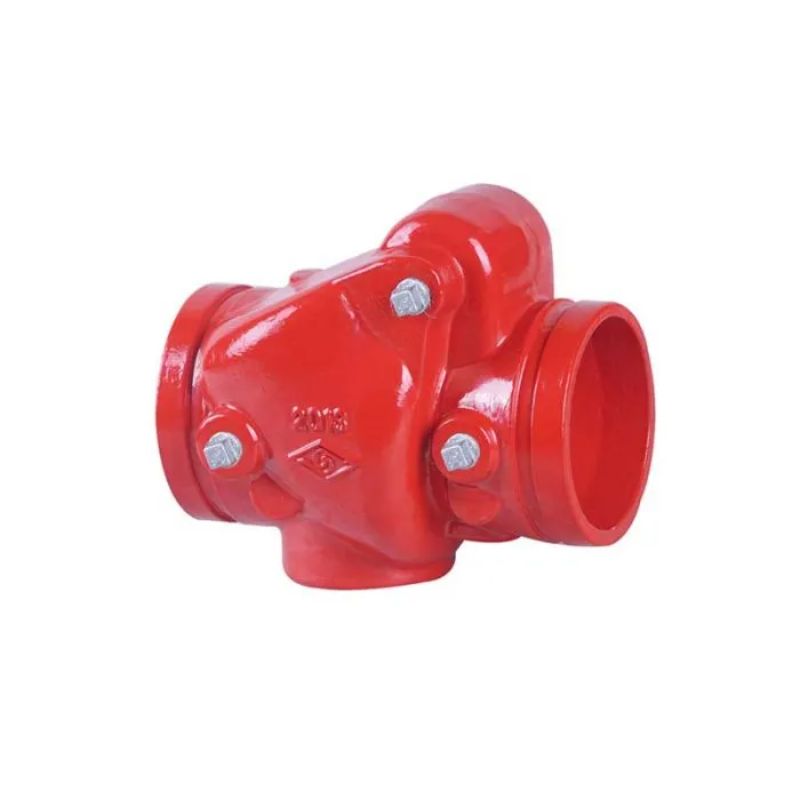

Swing Check Valve Grooved End

AED 294.00 – AED 861.00

Swing Check Valve Grooved End

Product Code : fs050571 Seller: Fireshop1001 Approved by : [woo_pro_badges_extended]

free delivery

Above AED1000 in Dubai
WARRANTY

For 365 days
always authentic

Only Reputed Brands
EASY PAYMENT

Multiple payment options

Description
Specifications
Features
Questions & Answers
Reviews (0)

Description

Non-return valve which permits water flow in one direction and prevents flow in reverse direction. This function is realized by a spring loaded stainless steel clapper with an EPDM rubber facing and an broadened bronzes eat, to provide a long service lime and leak-free sealing. It is widely used with various configurations in fire sprinkler systems, fire department connections, gravity pressure tank or by-pass connection etc.

Specifications

Valve Body: Ductile Iron ASTM A536, 65-45-12
Disc: DN50-100 AISI 304
DN150-300 Ductile Iron ASTM A536, 65-45-12
Disc Sealing Ring: EPDM
Spring: AISI 304
Seat Ring: ASTM B62 C83600
Epoxy Coating Color: RAL3000
Pressure Rating: 300PSI

Features

Non-return valve which permits water flow in one direction and prevents flow in reverse direction
This function is realized by a spring loaded stainless steel clapper with an EPDM rubber facing and an broadened bronzes eat, to provide a long service lime and leak-free sealing
It is widely used with various configurations in fire sprinkler systems, fire department connections, gravity pressure tank or by-pass connection etc
