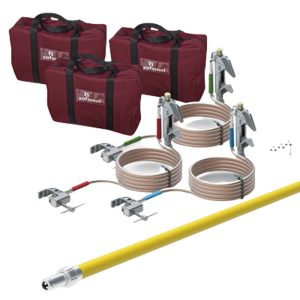

Sofamel 662 PATL-MPS/9510 High Voltage Overhead Lines

Click to enlarge

Sofamel 661 PATL-MPLEP2/9595 High Voltage Overhead Lines

VAT included

Build Enquiry List

Compare

Build Enquiry List

Product Code : fs0502848 Seller: Fireshop1001Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

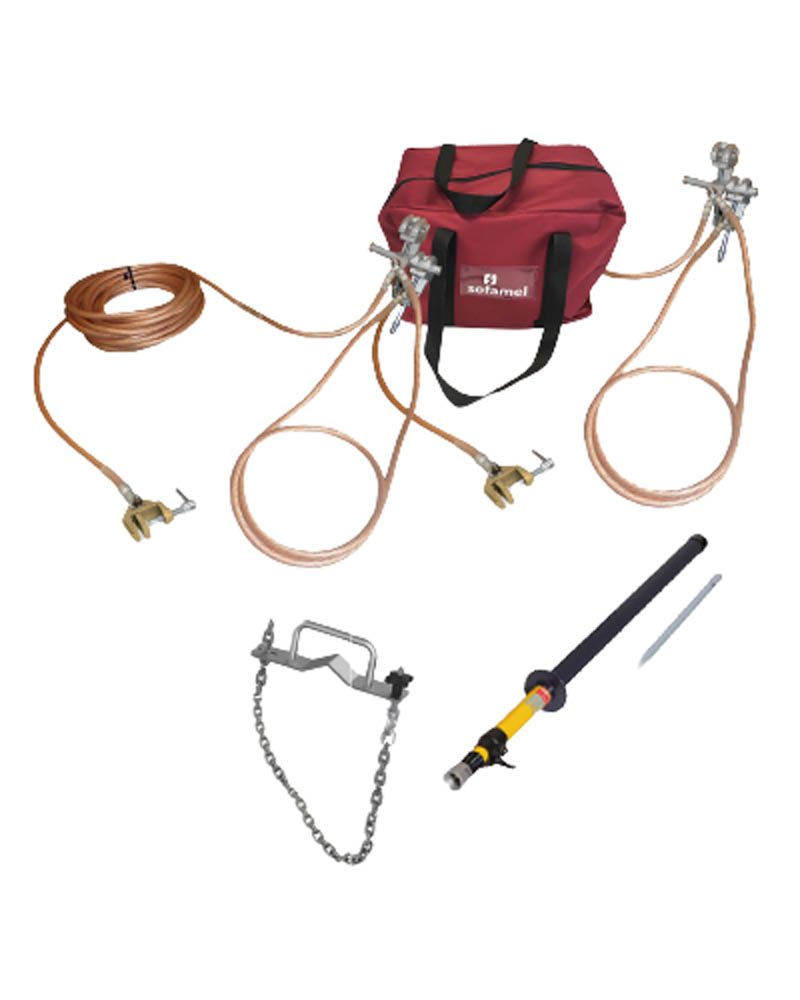

Earthing and short-circuit equipment for medium voltage overhead lines.The main aim for its installation is operator?s protection against an accidental commissioning or possible voltage return during repair operations.The MPLE clamp is fixed on bare conductors by screw-tightening. This equipment has got a MPLP clamp (carrier) which facilitates the lifting and placing of the clamps at the same time reducing installation time considerably.

Features

3 MPLE aluminium alloy clamps with screw tighten for cylindrical conductors with diameter between 5 and 45 mm.
2 MPLP aluminium alloy clamp (carrier) with screw tighten for cylindrical conductors with diameter between 5 and 45 mm.
2 copper cables with PVC insulation of 95 mm? section and 2.5 m long.
1 copper cables with PVC insulation of 95 mm? section and 4 m long.
3 TT-38L milling earthing lathe.
1 PEP-ECO clamp for post.
1 copper cables with PVC insulation of 95 mm? section and 13 m long.
1 earthing rod.
1 bag to store and transport the equipment.
