SIBCA-65mm NRS Gate Valve 300 PSI Flanged-GN-0364-FF UL/FM Listed
AED 548.10 VAT included
Next product
SIBCA-100mm NRS Gate Valve 300 PSI Flanged-GN-0364-FF UL/FM Listed
AED 770.70 VAT included
SIBCA-80mm NRS Gate Valve 300 PSI Flanged-GN-0364-FF UL/FM Listed
AED 616.35 VAT included
In stock
Product Code : fs0507762
Brand: SIBCA
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description

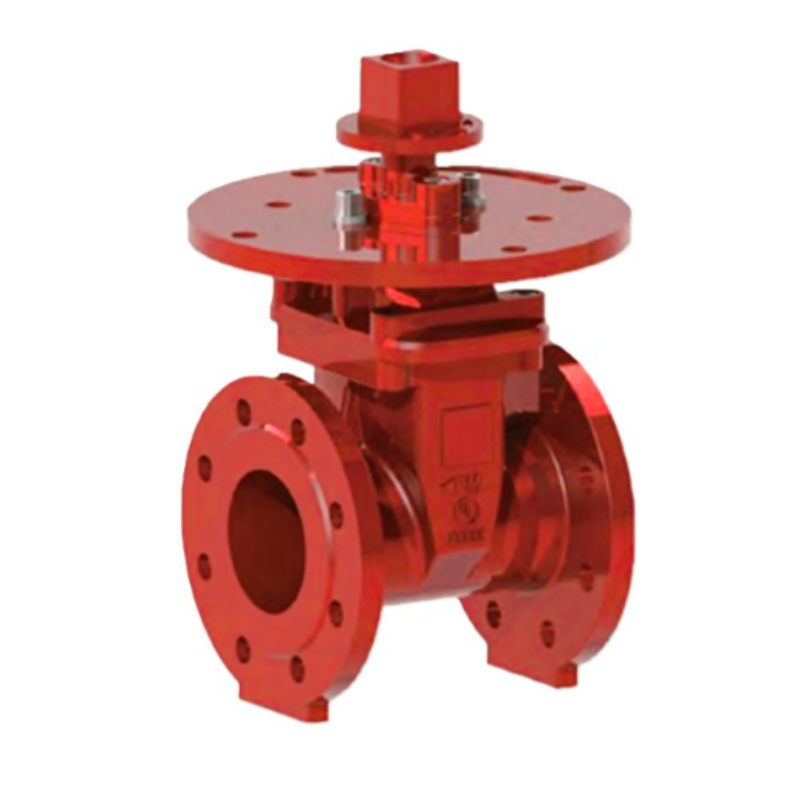

The SIBCA 80mm NRS Gate Valve (GN-0364-FF) is a heavy-duty valve designed for fire protection and water distribution systems. With a 300 PSI pressure rating, this flanged gate valve delivers reliable shut-off and control in fire sprinkler and hydrant networks.
Built with a Non-Rising Stem (NRS) design, it is ideal for confined spaces where vertical clearance is limited. As a UL Listed and FM Approved valve, it meets the highest standards for fire safety and performance, making it suitable for commercial, industrial, and municipal applications.
Features
- Resilient seated NRS (Non-Rising Stem) design
- UL listed for fire protection
- 300 PSI working pressure
- Flanged x Flanged end connection
- Ductile iron body and bonnet for durability
- EPDM coated wedge for reliable sealing
- Stainless steel stem and wedge nut
- Low flow resistance when fully open
- Compact and space-saving design
- Compliant with UL262 / AWWA C515 / BS5163
Specifications
- Model: GN-0364-FF
- Size: 80mm (3 inch)
- Working Pressure: 300 PSI
- Working Temperature: -10ºC to 120ºC
- End Configuration: Flange x Flange
- Flange Standard: ANSI B16.1 Class 125 / B16.42 Class 150, BS EN1092-2 PN16
- Body Material: Ductile Iron A536 65-45-12
- Stem: Stainless Steel AISI 304
- Wedge: Ductile Iron EPDM Coated
- Approvals: UL Listed
- Brand: Sibca
