Sharpeye 40/40L4B-211AC (UV/IR) Flame Detector provides a combination of UV and IR sensors, where the IR sensor operates at a wavelength of 4.5 μm, and can detect hydrocarbon-based fuel and gas fires. The UV/IR flame detector senses radiant energy in the short wave section of both the ultraviolet and infrared portions of the electromagnetic spectrum. The signals from both sensors are analyzed for frequency, intensity and duration. Simultaneous detection of radiant energy in both the UV and IR sensors triggers an alarm signal. The UV sensor incorporates a special logic circuit that helps prevent false alarms caused by solar radiation. Due to increased reliability, the 40/40 Series warranty period has been extended to 5 years and is SIL2 (TUV) approved to IEC 61508.
Previous product
Back to products
Honeywell Sensepoint SPXCDXSG1SS XCD Hydrogen H2 Sensor Replacement Cartridge
AED 1,890.00 VAT included
Next product
Honeywell Sensepoint XCD SPXCDALMPX Fixed Industrial Gas Detector
AED 5,321.40 VAT included

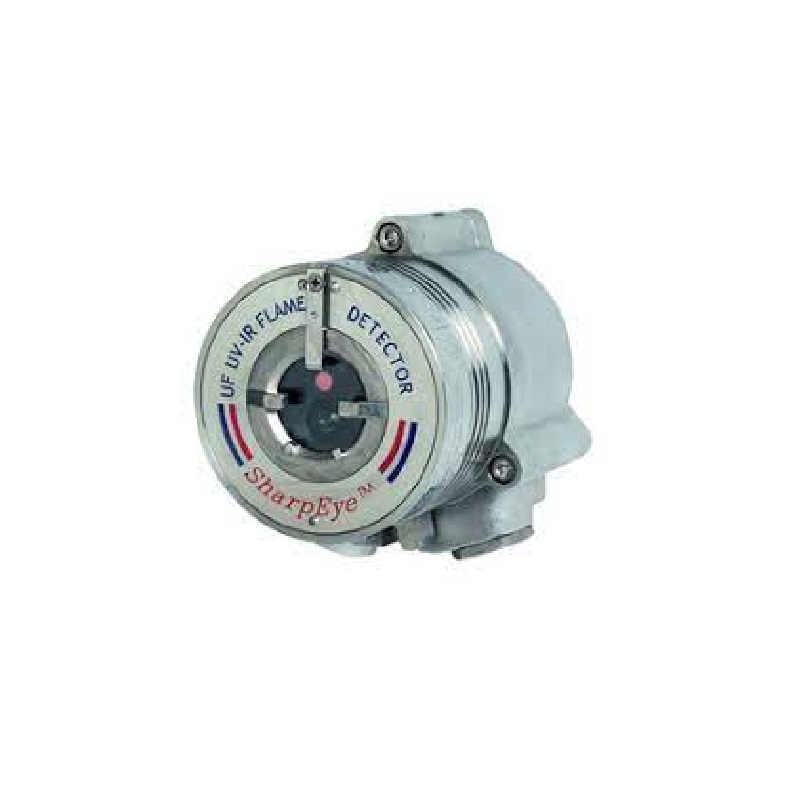

Sharpeye 40/40L4B-211AC (UV/IR) Flame Detector
AED 11,760.00 VAT included
Specifications
- Product: Flame Detector
- Manufacturer: Spectrex Inc - USA
- P/N: 40/40L4B-211AC
- Operating Voltage: 24 VDC nominal (18-32 VDC)
- Cable Entries: 2 x 3/4" - 14NPT conduits or 2 x M25 x 1.5 mm ISO
- Spectral Response UV: 0.185 - 0.260 μm; IR: 4.4-4.6 μm
- Response Time: Typically 5 seconds
- Adjustable Time Delay: Up to 30 seconds
- Sensitivity Ranges: 1 ft2 (0.1m2) n-heptane pan fire from 93ft (28m)
Features
- Automatic Built-In-Test (BIT) and Manual - to assure continued reliable operation (in 40/40L4B only)
- Heated window - for operation in harsh weather conditions (snow, ice, condensation)
- Approved to Safety Integrity Level 2 (SIL2 – TUV) Model 40/40L4B only
- Multiple output options for maximum flexibility and compatibility
- High Reliability - MTBF - minimum 150,000 hours
- User Programmable via HART or RS-485
- 3rd party Performance Approved
- UV/IR Dual-Sensor
- 5-Year Warranty
- Marine Approval
