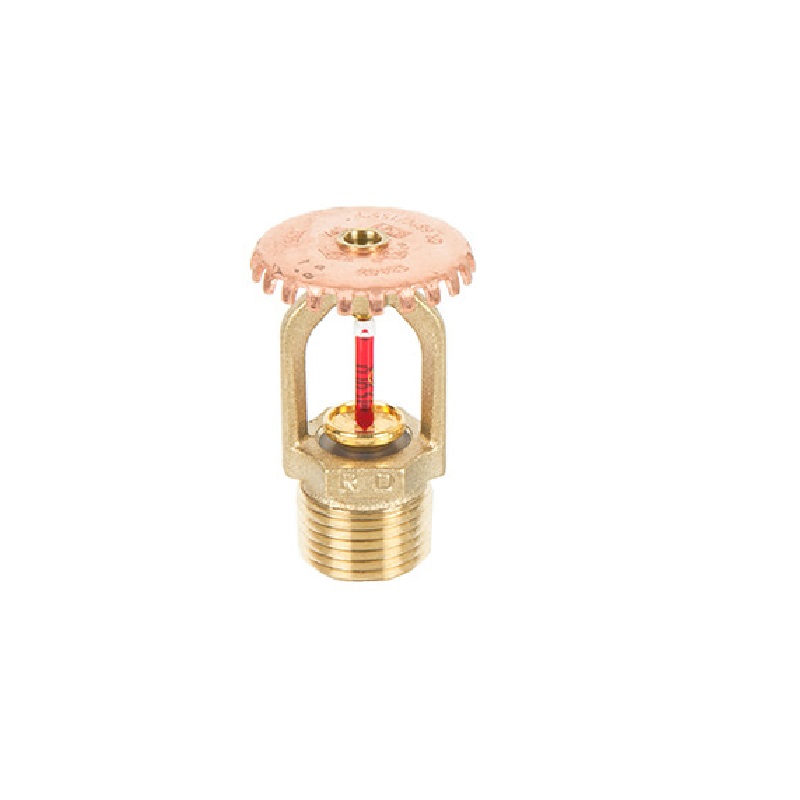

Rapidrop RD025 SSU Upright Quick Response Sprinkler, Brass Finish, 68’C
AED 25.20 VAT included
Description
Rapidrop RD025 SSU Upright Quick Response Sprinkler, Brass Finish, 68’C frangible glass bulb automatic sprinklers that are CE, VdS and LPCB approved. They are standard orifice fire sprinklers for installation in fire sprinkler systems designed in accordance with standard installation rules, e.g. EN12845 or the requirements of the authority having jurisdiction.
SSU Upright sprinklers produce a hemispherical water distribution pattern below the deflector. In the instance of fire, the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the spring seal assembly. Water flows from the orifice onto the sprinkler deflector which diffuses the water into a uniform spray pattern which extinguishes or controls the fire.
Features
- In the instance of fire, the heat causes the fluid in the glass bulb to expand which shatters the glass and releases the spring seal assembly
- Standard orifice fire sprinklers for installation in fire sprinkler systems designed in accordance with standard installation rules
- SSU upright sprinklers produce a hemispherical water distribution pattern below the deflector
Specifications
- Product: Upright Sprinkler
- Brand: Rapidrop
- Model: RD025 SSU
- K factor: K80 (K5.6)
- Standard Office Size: 15mm (½”)
- Thread Size: ½”NPT R½” - ½”BSPT available on special order
- Max. Working Pressure: 12.1 bar (175 psi)
- Bulb: 3mm
- Approvals: FM approved, cULus Listed, LPCB, VdS, CE, SBSC, Gost
- Weight: 57grams (2oz.)
