Description

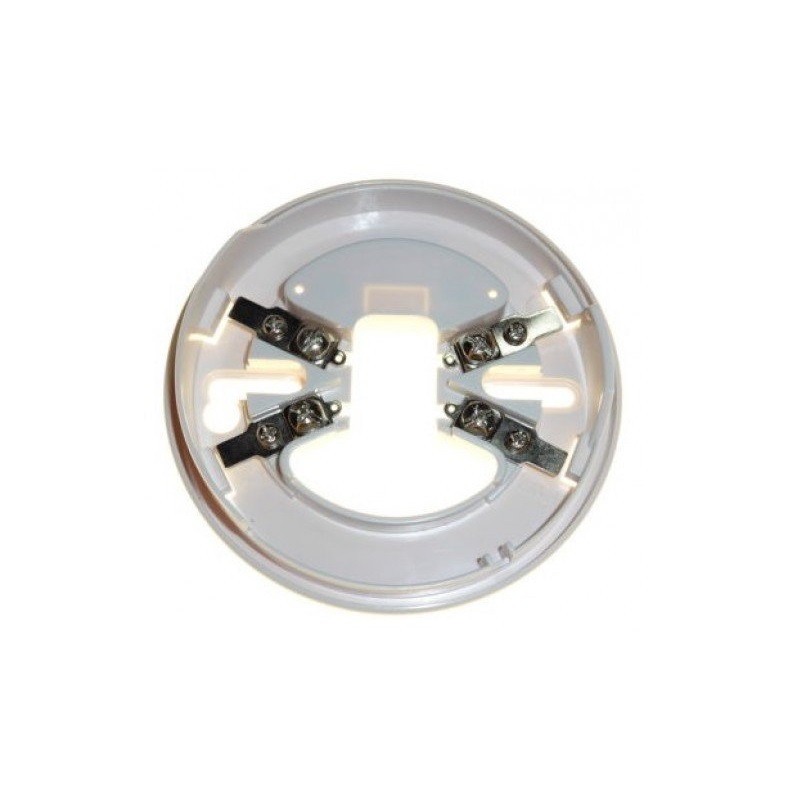

The Protec 6000PLUS standard base is designed for use with the Protec 6000PLUS series fire detection devices. It allows the detectors to be mounted directly to any flat surface, or BESA box. Provision is also made for surface mount trunking entry via side breakouts. It has an in-built earth connection to allow easy termination of cable screens and permits earth continuity on broken segments of cable.
The base features robust wiring terminals with captive clamping washers to ensure secure wiring termination. Terminals are provided inside the molding for loop connections and the termination of cable screening. Provision is also made for the connection of an optional remote LED if required. Loop continuity is maintained by a switch on the 6000PLUS/BASE.
Features
- Compatible with Protec 6000PLUS series detectors
- Approved to EN54 when used with Protec detectors
- Aesthetic, low profile design
- Quick and simple to Install
- Robust terminal wiring
- Continuity switch
Specifications
- Product: Standard Sensor Base
- Brand: Protec
- Model: 6000PLUS
- Ingress Protection: IP32
- Environment: -10°C to +50°C, 95% R.H. non condensing or icing)
- Material: White polycabonate V0 rated
- Approvals: CE Marked (EEC89/336)
- Application: Indoor Installation
- Voltage Range: 30V maximum
- Weight (excluding base): 56g
