Description

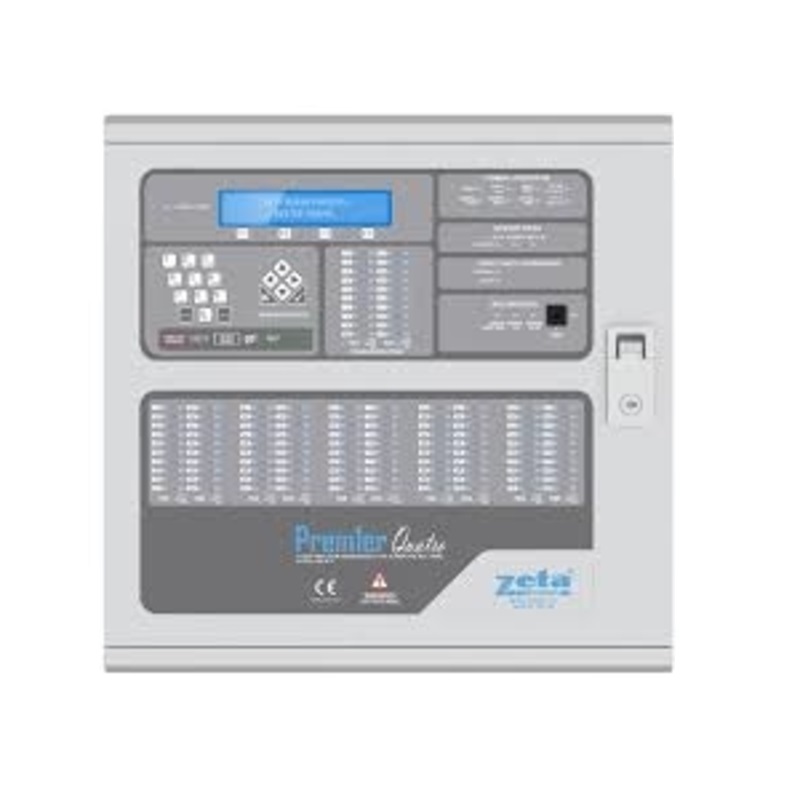

Premier Quatro QT/4 Analogue 4 Loop Addressable Fire Alarm Panel specially designed Quatro Connect software is available for configuring the panel or multi-panels and download to the system via USB connection. The Quatro control panel is designed, manufactured and tested to fully meet the requirements of EN54 part 2 and part 4. This panel is of modular nature and can be supplied with 4 loop versions.
Up to 64 panels/repeaters can be networked over 10,000m of data cable and a special alarm the management system can provide all needs for very large projects such as university campus, hospital complex etc.
Features
- Multi-language support (currently English & Spanish, 3 more languages TBC)
- Can be configured via PC or via Panel
- 1-4 loop, expandable by loop cards
- 2 x conventional sounder circuits
- Outputs programmable by zones
- Zone or Device Disablement
- 20 character device text
- 250 programmable zones
- 20 character zone text
- Real Time Clock
Specifications
- Product: Addressable Fire Alarm Panel
- Brand: Zeta Premier Quatro
- Model: QT/4
- Supply Voltage: 230V +10%/-15% @ 50-60 Hz
- Number of loops: 4
- Loop Capacity: 250
- Fault Output: Normally Energised Relay: 30V @ 1A
- Fire Output: Relay: 30V @ 1A
- Dimensions: 485 x 477.5 x 160 mm
- IP Rating: IP30
