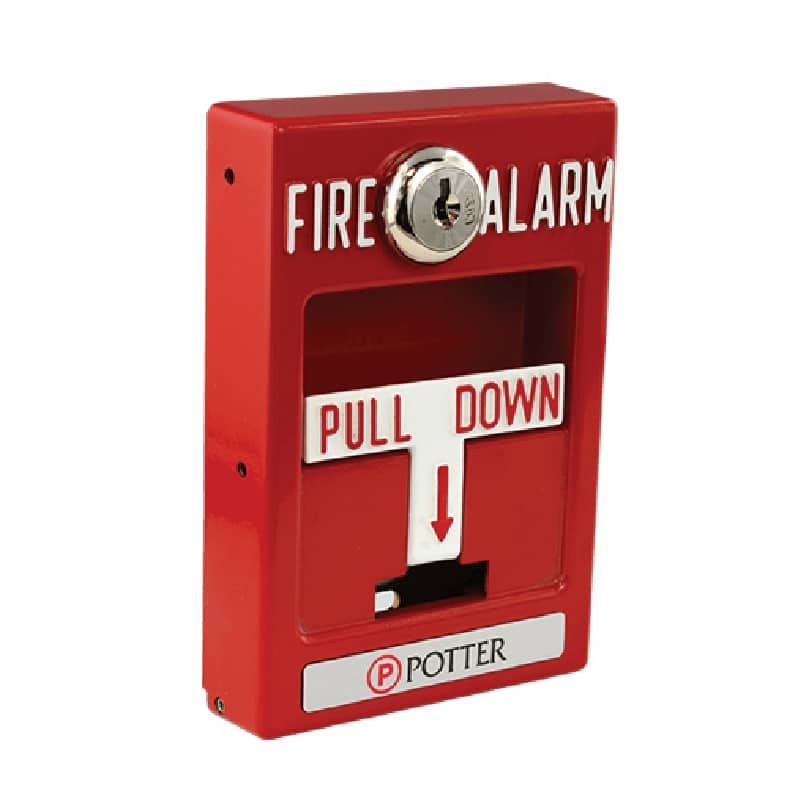

Potter PAD100-PSSA Addressable Pull Station Single Action is activated by simply pulling the white T bar handle down. Once activated, the T bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the T bar back into the normal position and re-secure the front cover. The PAD100-PSSA is compatible with Potters IPA and AFC/ARC series addressable fire alarm control panels. It is a non-coded addressable pull station available in either a single or dual action
model and installs on a single gang box or surface mounts using the P32-BB or P32-DBB (deep) back box
Previous product
Back to products
CPG Signals SPHX PowerTone Explosion Proof Speaker
AED 3,070.20 VAT included
Next product
BW Technologies SR-W-MP75C MICROpel Combustible (LEL) Sensor
AED 611.10 AED 525.00 VAT included
Potter PAD100-PSSA Addressable Pull Station Single Action with back box
AED 525.00 VAT included
Potter PAD100-PSSA Addressable Pull Station Single Action is activated by simply pulling the white T bar handle down. Once activated, the T bar cannot be reset without opening the front cover. Opening the front cover will also activate the pull station. To reset the PAD100-PS Series, use the Potter WS-93 key to unlock and open the front cover. Once the cover is open, push the T bar back into the normal position and re-secure the front cover.
Product Code : fs107775
Brand: Potter
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Description
Specifications
- Product: Addressable Pull Station
- Brand: Potter
- Model: PAD100-PSSA
- Dimensions 4.75 H x 3.25 W x 1.75 D
- Mounting Options: Single gang box or Potter P32-BB/DBB
- Operating Voltage: 24.0 VDC
- Max SLC Standby Current 200uA
- Max SLC Alarm Current 200uA
- Environmental Limitations: 32°F 120°F (0° 49°C) Indoor Only
- Relative Humidity Range 0 93% (non-condensing)
- Shipping Weight APS-SA 1.22 lbs. APS-DA 1.46 lbs
Features
- Single or Dual Action versions Available
- Durable die-cast construction
- Reset key matches the fire alarm control panels
- Compatible with IPA Series panels
- SLC Class A, Class X & Class B
- UUKL Listed for Smoke Control
- The product includes a 5-year warranty
