Description

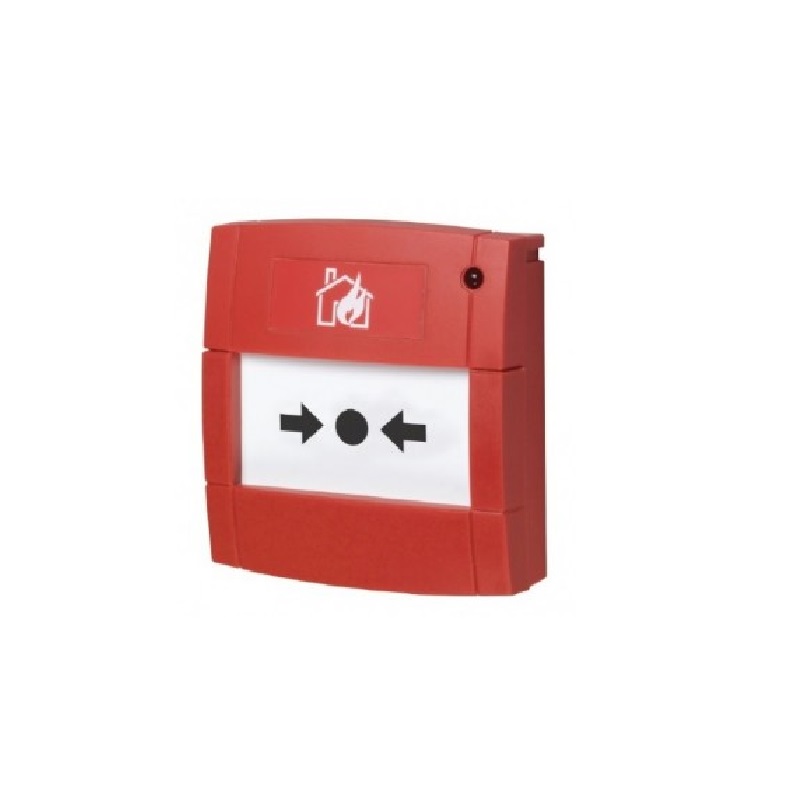

Morley IAS MI-MCP-Glass Addressable Glass Manual Call Point is designed to provide a manual alarm interface to Morley IAS’s fire alarm control panel. Installation efficiency, flexibility, and compliance with the latest standards are at the heart of the call point range. The unique ‘plug and play’ concept is designed specifically to reduce installation time by using a terminal block that can be wired during the initial installation cabling with a link to provide continuity for testing. During the commissioning phase, the links are removed, and the terminal block is simply inserted into the connector at the back of the unit.
Features
- Unique ‘Plug & Play’ installation concept
- Analogue addressable communications
- Re-settable operating element option
- Fully compliant with EN54, Part 11
- Integral loop isolation option
- Backward compatibility
- Enhanced aesthetics
- Integral LED``
Specifications
- Product: Addressable Glass Manual Call Point
- Brand: Morley
- Model: MI-MCP
- Operating Voltage: 15V to 30Vdc max
- Quiescent (without isolator): 260µA
- Alarm Current: 6mA (both)
- Operating Temperature: -30°C to +70°C
- Relative Humidity: 0% - 95% non-condensing
- Dimensions: 89 x 93 x 59.5
- Weight: 160g
