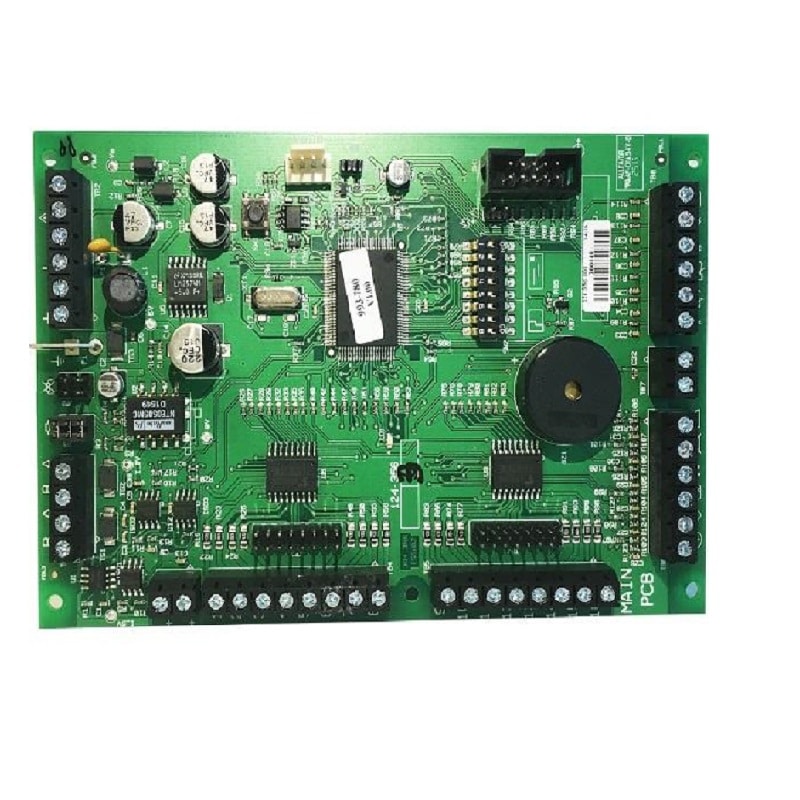

Morley 020-909 – DXC Compact Mimic Driver
See all products from morleyAED 1,552.95 VAT included
Provides 16 LED outputs, common fire, fault, test, disablement and power OK output. Accepts key switch inputs to enable evacuate, silence, lamp test, mute and reset. Connects directly to the RS485 port provided as standard on the DXc panels. Expandable with up to 9 additional expansion mimic boards each providing 16 additional outputs. (020-910). Requires 24 Vdc.
Out of stock
Product Code : fs108413
Brand: Morley
Seller: Fireshop1001Approved by : [woo_pro_badges_extended]
free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options
Description
The DXc Compact Mimic allows geographic floor map’ zonal indicators to be built for situations where increased clarity of the fire location is required above that given by standard numbered zonal indicators.
The Compact Mimic is an expandable system suitable for standard’ or more complex applications where mimic displays are required in association with DXc fire control panels.
The Compact Mimic main board (020-909) can display General Fault, General Disablement, Power OK (Mimic’s own power status), General Fire, Test, Communication Fail state, 16 LED’s or relay outputs configured to follow the fire and fault status and has provision for Evacuate, Silence Sounders, Lamp Test, Mute Buzzer and Reset pushbuttons and for a level 2 access key switch.
Features
- Model: Morley 020-909 - DXC Compact Mimic Driver
- Provides 16 LED outputs
- Connects to RS485 port
- Allows geographic floor map' zonal indicators to be built
- Combine with expansion cards to create up to a 160 zone system
Specifications
- Brand: Morley
- Operating Voltage: 18 to 30 Vdc
- Dimensions (HxWxD): 25 x 102 x 152 mm
- Configured for LED: limited to 6mA
- Configured for relay: maximum 50mA
