KAC M8A-G000SF-STCK-11 Green Surf/Reset Call Point Triple Pole is ideal for use with security controlled locking systems, and provides a flexible solution for integrated systems which require greater functionality in the access control market. The product comprises three change-over outputs which allow the call point to switch three separate circuits. To ensure failsafe unlocking of the exit it is considered best practice to cut both connections, positive and negative, to the magnetic door lock. This utilises 2 separate poles within the call point. The third pole provides additional flexibility to activate a local alarm or sounder or to connect to the buildingÂ’s security system.
Previous product
Back to products
Fonux FX 200G LED Green Exit Sign
AED 194.25 VAT included
Next product
KAC K30SRS-43 Firemans 3 Position Keyswitch Call Point Red
AED 147.12 VAT included

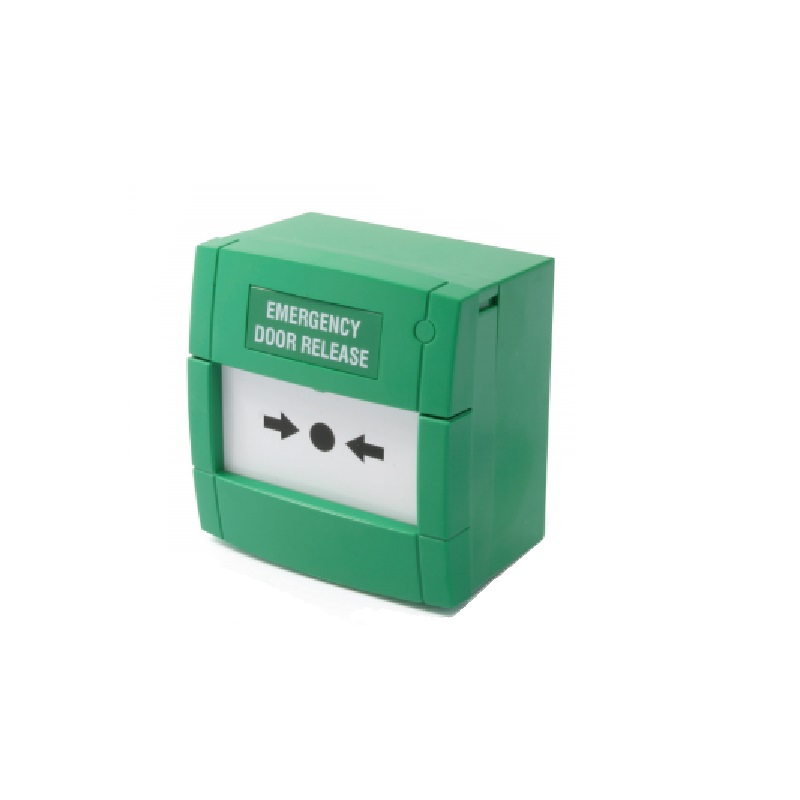

KAC M8A-G000SF-STCK-11 Green Surf/Reset Call Point Triple Pole
AED 122.99 VAT included
KAC M8A-G000SF-STCK-11 Green Surf/Reset Call Point Triple Pole is ideal for use with security controlled locking systems, and provides a flexible solution for integrated systems which require greater functionality in the access control market. The product comprises three change-over outputs which allow the call point to switch three separate circuits.
Product Code : fs05022322
Brand: KAC
Seller: Fireshop1001
Approved by : [woo_pro_badges_extended]
-
free delivery
Above AED1000 in Dubai
-
WARRANTY
For 365 days
-
always authentic
Only Reputed Brands
-
EASY PAYMENT
Multiple payment options
Specifications
- Product: Triple pole Call Point
- Brand: KAC
- Model: M8A-G000SF-STCK-11
- Body colour: Green, RAL6016
- Body Case: PC/ABS
- Operating element: Glass or polycarbonate
- Operating Voltage: 12 to 30VDC
- Average current consumption: 2A max
- Cable Terminal Size: 0.5-2.5mm²
- Ingress Protection: IP24D internal use only
Features
- Operates on 12V and 24V systems, making the range ideal for security applications
- Single activation allows signal to three separate circuits
- High grade components maximise operational life
- Supplied with two function markings as standard
- Choice of operating element – flexi or glass
- Suitable for indoor applications only
- Compatible with KAC accessories
- Easy ‘Plug & Play’ installation
