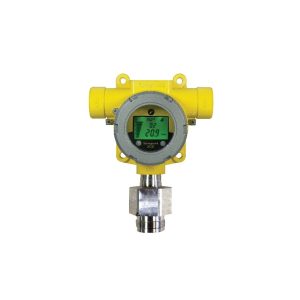

Honeywell SPXCDASMG1 Sensepoint XCD Fixed Industrial Gas Detector AED 7,245.00

Next product

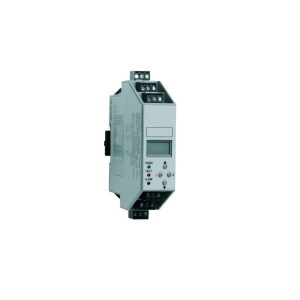

HONEYWELL UNIPOINT CONTROLLER (MV) 2306B2000 x 4+ PLC enclosure + Power supply AED 9,450.00

Click to enlarge

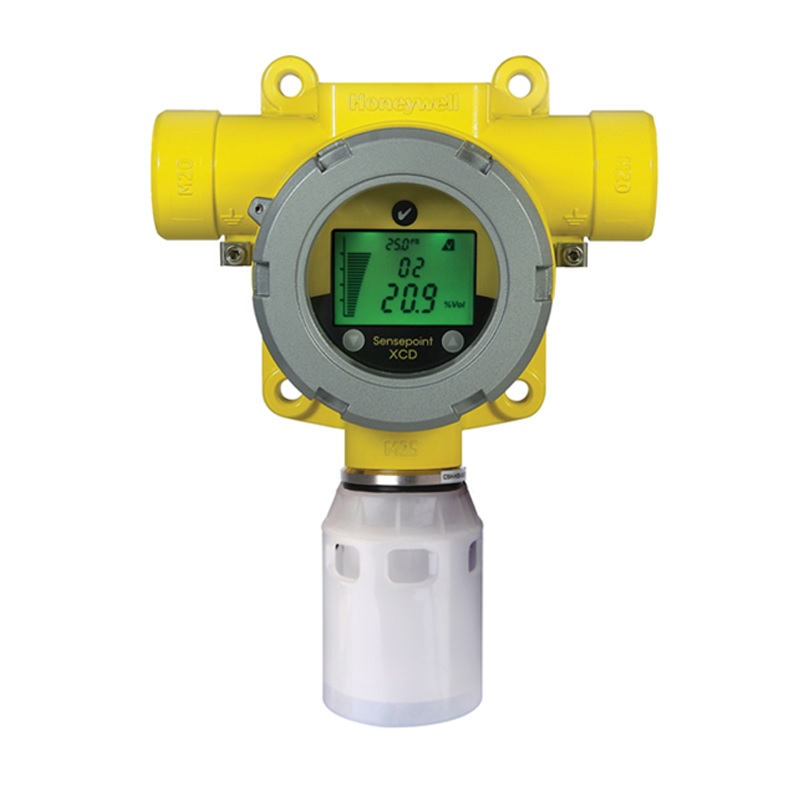

Honeywell Analytics SPXCDALMFX XCD Gas Detector, Flammable CAT 0-100%LEL, with LM25, M20 Entry

Name: Honeywell Analytics SPXCDALMFX XCD Gas Detector, Flammable CAT 0-100%LEL, with LM25, M20 Entry
SKU: fs050649
Availability: InStock

AED 3,780.00 VAT included

Compare

Product Code : fs050649 Seller: Approved by : [woo_pro_badges_extended]

free delivery
Above AED1000 in Dubai
WARRANTY
For 365 days
always authentic
Only Reputed Brands
EASY PAYMENT
Multiple payment options

Description

Honeywell Analytics SPXCDALMFX XCD Gas Detector, 4 to 20 mA output, ATEX/IECEx/Asian approvals, 2 x M20 entries, painted LM25, includes catalytic sensor cartridge 0 to 100%LEL, user selectable FSD between 20% and 100%LEL (10%LEL resolution), includes nylon weather protection by Honeywell Analytics

Features

Compatible with high temperature sensors for use in and around Gas Turbine Enclosures and solvent based printing and coating drying ovens
High temperature gas sensors have thermally matched beads for highest accuracy and stability enabling low alarm levels
Transmitter can be mounted in easy to access area even if sensor is in a hard to access or restricted access area
Standard temperature catalytic and infrared sensor types also available
Sensor can be mounted up to 30 metres (100 feet) from transmitter
Compliant with the requirements of HSE guidance note PM84

Specifications

Product: XCD Gas Detector
Brand: Honeywell Analytics
Part No: SPXCDALMFX
Input Voltage Range: 16 to 32VDC (24VDC nominal)
Current Output: Sink or source
Communication: RS485, MODBUS RTU
Material: Housing: Epoxy painted aluminium alloy LM25 or 316 stainless steel Sensor: 316 stainless steel
Mounting: Integral mounting plate with 4 x mounting holes suitable for M8 bolts. Optional pipe mounting kit for horizontal or vertical pipe Ø1.5 to 3" (2" nominal)
IP Rating: IP66 in accordance with EN60529:1992
Weight (approx): Aluminium Alloy LM25: 4.4lbs 316 Stainless Steel: 11lbs
